  9. Power Inverter and Battery Charger, Modified Sine Wave, 4,000 W Peak, 2,000 W Continuous, 1 Outlets

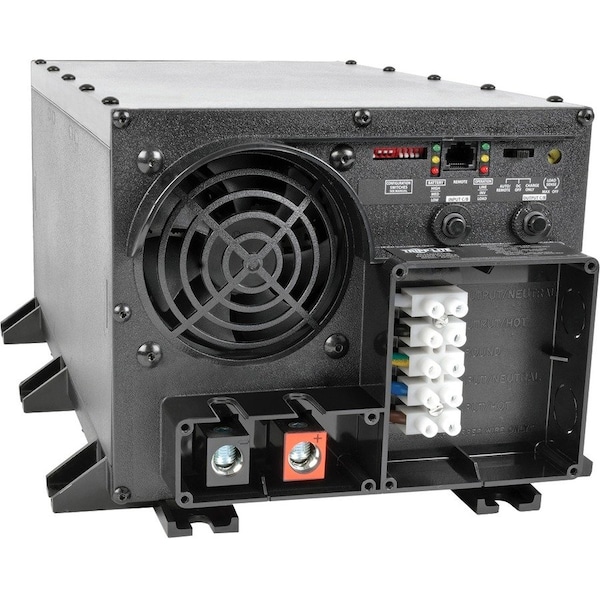

Tripp Lite Power Inverter and Battery Charger, Modified Sine Wave, 4,000 W Peak, 2,000 W Continuous, 1 Outlets APS2012 - main

Power Inverter and Battery Charger, Modified Sine Wave, 4,000 W Peak, 2,000 W Continuous, 1 Outlets

  • Mfr # APS2012

  • Zoro # G3306274

product price: $1,259.99
/ea
Free Shipping & Returns

Key Features

Continuous Output Power
2,000 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
Outlet Type
Hardwired
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
APS2012
Zoro #
G3306274
UPC #
037332090270
Country of Origin
China

Dimensions

Inverter Width
8.5 in
Charger Width
8.5 in
Width
16-1/4"
Height
8-1/2"
Depth
7-1/4"
Charger Height
7.3 in
Inverter Height
7.3 in
Charger Depth
16.3 in
Inverter Depth
16.3 in
Unit Dimensions (hwd / in.)
7.250 x 8.500 x 16.250

Details

Item
Power Inverter and Battery Charger
Peak Output Power
4,000 W
Continuous Output Power
2,000 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
Outlet Type
Hardwired
DC Connection
Bolt Down Terminals
Number of Outlets
1
Case Material
Polycarbonate
Charger Output Amps
100 A
Max. Input Current
Full continuous load - 192 A at 12V DC; 38 A at 120V AC with full inverter and charger load
Automatic/Manual
Automatic
Features
Automatic Transfer Switching, Emergency and Remote Sites, Front Panel Leds, Meets Normal and Peak Power Demands, Optional Remote Control Capability, Reliable Power for Mobile, Rugged Polycarbonate Housing
Application
Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
Nominal Output Power
2,000 W
Charger Input Voltage
120V AC
Charger Output Voltage
120V
Inveter Output Voltage
120V
Output Frequency
60 Hz
Input Voltage
12VDC
Charger Input Current
21 A
Charger Output Current
100 A
Output Voltage
115VAC
Maximum Frequency
60 Hz
Product Series
APS
Input Voltage Range
10 V DC - 15 V DC
Product Line
PowerVerter
Product Color
Black
Package Contents
PowerVerter APS Inverter/Charger 2000W, APS2012 Inverter/Charger, Instruction manual with warranty information
Product Name
PowerVerter APS 4kW Inverter
Additional Information
Extended Run UPS Configure as a UPS for long-term battery support of telecom systems, security alarms, computer systems and various other motorized and electronic loads., Standalone Power Alternative power source for use in off-grid, backwoods, alternative energy and export applications where commercial power is not continuously available., Automotive Connect to an automotive electrical system to run power tools, computers, electronic test equipment, home entertainment and other AC appliances in fleet service vehicles, over-the-road trucks, campers, RVs, minivans and more., Allows unlimited runtime capability by allowing the use any number of user-supplied batteries, Frequency control for operating stability, User supplies cabling, 4 gauge or larger recommended, Cooling Method: Fan, Auto-transfer to enable battery charging and automatic UPS support for blackouts and brownouts, RJ45 port allows connection of APS remote switch, Battery runtime is dependent upon the size and number of user-supplied batteries in 12V configuration, Advanced 20/60 amp selectable , 3-stage battery charger and selector switch for gel or wet cell batteries, Resettable circuit breaker protects APS against system overloadLow voltage transfer to battery power: User configurable to 75V, 85V, 95V and 105VHigh voltage transfer to battery power: User configurable to 135V, 145VLED Alarm and Switches: Front Panel LEDS : Six LEDS, Switches : Three position on/off/remote switch enables simple on/off power control plus auto or remote setting
Load Sensing
Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
Nominal Output Voltage(s) Supported
120V
Output Receptacles
Hardwire
Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
Transfer Time (Line Power to Battery Mode)
16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
High Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)
Expandable Runtime
Yes
Recommended Electrical Service
DC INPUT: Requires 12V DC input source capable of delivering 192A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).
Battery Charge
25A / 100A (selectable)
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Package Includes
APS2012 2000W PowerVerter APS 12V DC 120V AC Inverter/Charger;Owner's manual
Voltage Compatibility (VAC)
120
Low Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
Nominal Input Voltage(s) Supported
120V AC
Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
Overload Protection
Includes 25A input breaker dedicated to the charging system and 20A output breaker for AC output loads
Frequency Compatibility
60 Hz
Material of Construction
Polycarbonate
AC Suppression Joule Rating
600
Voltage Compatibility (VDC)
12
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Relative Humidity
0%-95% Non-Condensing
DC System Voltage (VDC)
12
Maximum Input Amps / Watts
DC INPUT: Full continuous load - 192A at 12V DC. AC INPUT: 38 amps at 120V AC with full inverter and charger load (21A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output l
Output Frequency Regulation
60 Hz (+/- 0.3 Hz)
Cooling Method
Fan

Description

Inverter and Battery Charger, Inverter Output Form Modified Sine Wave, DC Connection Hardwired, Peak Output Power 4,000 W, Inverter Input Voltage 120V AC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Case Material Polycarbonate, Cooling Method Fan, Application Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
