Item
Power Inverter and Battery Charger
Peak Output Power
4,000 W
Continuous Output Power
2,000 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
DC Connection
Terminal Posts
Case Material
Polycarbonate And Aluminum
Automatic/Manual
Automatic
Application
Recreational Applications
Charger Output Amps
100 A
Nominal Output Power
2,000 W
Charger Input Voltage
120V AC
Charger Output Voltage
120V
Features
Display Leds, Moisture-Resistant Construction Enables Vehicular Operation in High-Humidity Environments, Overtemperature Protection
Includes
Battery Temperature Sensor Cable, Conduit hanger
Max. Input Current
Full continuous load - 190 A at 12V DC; 38 A at 120V AC with full inverter and charger load
Inveter Output Voltage
120V
Charger Input Current
20 A
Charger Output Current
100 A
Certifications & Standards
UL 458 (US & Canada)
Package Contents
PowerVerter MRV2012UL Inverter, Instruction Manual, Battery Temperature Sensor Cable, Conduit Hanger
Additional Information
Extra Input: AC In
Product Name

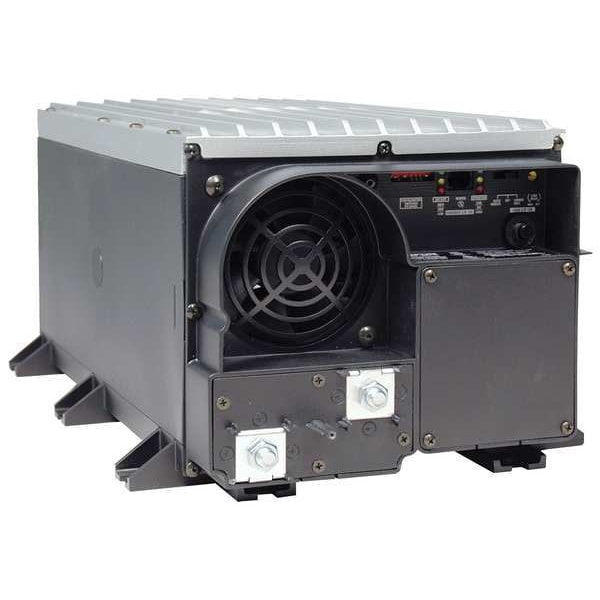

PowerVerter MRV2012UL Inverter
Included Accessories

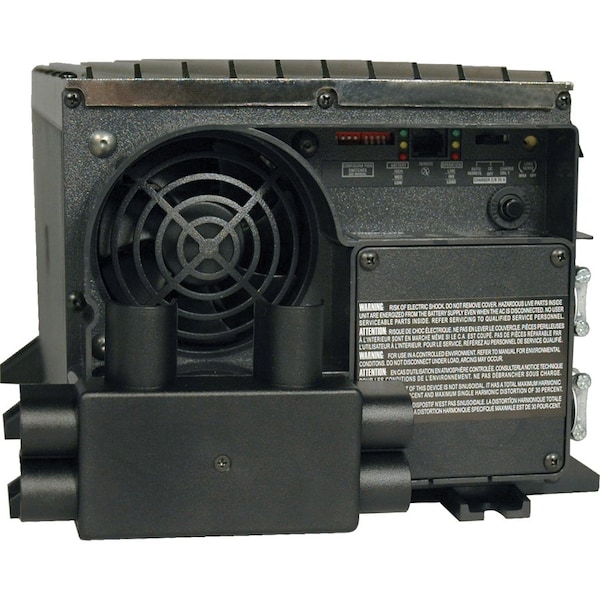

Battery temperature sensor cable; conduit hanger
Transfer Time (Line Power to Battery Mode)
16.6 ms (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)
LVC (Low Voltage Cut-Off)
10VDC +/-3%
Form Factors Supported
Mounting slots enable secure placement of inverter on any horizontal surface (see manual for additional mounting information)
DC System Voltage (VDC)
12
Nominal Output Voltage(s) Supported
120V
Voltage Compatibility (VAC)
120
Switches
3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptibl
Package Includes
MRV2012UL Inverter/Charger;Instruction manual with warranty information;Battery Temperature Sensor cable;Conduit hanger
Output Frequency Regulation
60 Hz (+/- 0.3 Hz)
Nominal Input Voltage(s) Supported
120V AC
Material of Construction
Polycarbonate, Aluminum
Front Panel LEDs
6 LEDs offer continuous status information on load (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Maximum Input Amps / Watts
DC INPUT: Full continuous load - 190A at 12V DC. AC INPUT: 38 amps at 120V AC with full inverter and charger load (20A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output l
Frequency Compatibility
60 Hz
Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120V AC (+/-5%).
Overload Protection
Includes 25A input breaker dedicated to the charging system
Voltage Compatibility (VDC)
12
Output Receptacles
Hardwire
High Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 145V
Load Sensing
Optional load-sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load-sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
Recommended Electrical Service
DC INPUT: Requires 12V DC input source capable of delivering 190A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire
Battery Charge
25A / 100A (user-selectable)
Low Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user-adjustable to 85, 95, 105V - see manual)
Relative Humidity
0%-95% Non-Condensing
Product Certifications
UL 458
