Shop TRIPP LITE

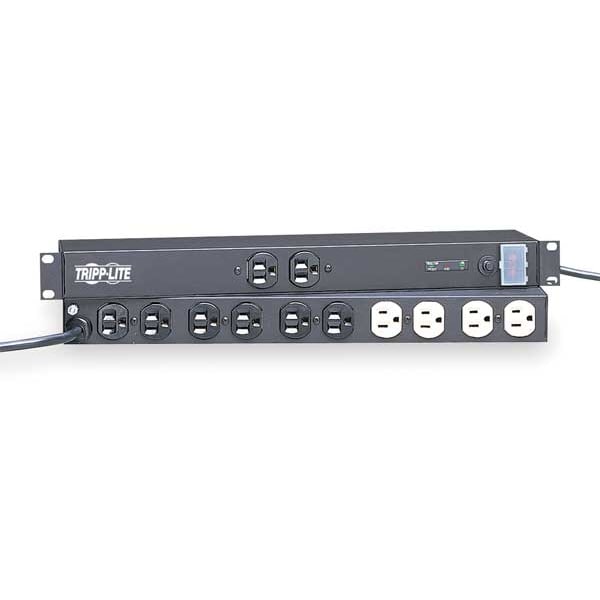

Power Strip, Surge, (2) 5-15R, (10) 5-20R, 5-20P, 15 ft., Black

  • Mfr # IBAR 12/20 ULTRA

  • Zoro # G3138895

product price:
$
212.99
/ea
Free Shipping & Returns

Key Features

Type
Surge
Receptacle Configuration
(2) 5-15R, (10) 5-20R
Plug Configuration
5-20P
Cord Length
15 ft.
Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IBAR 12/20 ULTRA
Zoro #
G3138895
UPC #
037332099235
Country of Origin
China

Dimensions

Cord Length
15 ft.
Length
4 in
Width
4 in
Height
1 3/4 in
Depth
4"
Length (Straight Wireway)
19 in
Overall Length
4 in
Overall Width
17 1/2 in
Overall Height
1 3/4 in
Wire Rope Length
4 in

Details

Item
Power Strip
Type
Surge
Receptacle Configuration
(2) 5-15R, (10) 5-20R
Plug Configuration
5-20P
Color
Black
Standards
ANSI C62.41; Conforms to IEE 587; RoHS Compliant
Voltage
120VAC
Circuit Breaker
Yes
Receptacle Type
NEMA 5-15R
Housing Material
Metal
Metered
Non-Metered
Mounting Style
Rack
Max. Amps
20A
GFCI Protected
No
Power Indicator
Light
Outlet Surge Protection
Yes
Number of Outlets
12
Phase
Single
Plug Type
NEMA 5-20P
Special Features
Rated 3840 Joules
Outlet Center Distance
38.9mm Front and 40.65mm Rear
Includes
Mounting Brackets
NEMA Plug Configuration
NEMA 5-20P
Rated Joules
3840 J
Noise Attenuation
40 to 80 dB
NEMA Receptacle Configuration
NEMA 5-15R
Coax Surge Protection
No
Hz
50/60 Hz
Max. Surge Current
96kA
Frequency
50/60 Hz
Features
Diagnostic LED(s), Integrated Keyhole Mounting Slots, Transparent locking switch cover prevents accidental shutoff, Safe Thermal Fusing
Watts
2400W
Maximum Line Current
20 A
Certifications & Standards
UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications
Surge Energy Rating
3840 J
Input Voltage
120 V AC
Compatibility
TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more
Package Contents
IBAR12/20ULTRA, IBAR12/20ULTRA Surge Suppressor, Warranty information, Instruction manual
Output Voltage
120 V AC
Built-In Circuit Breaker
Yes
Maximum Current
20 A
Distance Between Rear Outlets
1 5/8 in
Distance Between Front Outlets
1 1/2 in
Maximum Input Voltage
120V AC
Rack Units
1

Description

Surge Protected Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 12, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection Yes, Metered Non-Metered, Rack Units 1, Mounting Location Horizontal Rack, Plug Type NEMA 5-20P, Distance Between Front Outlets 1 1/2 in, Distance Between Rear Outlets 1 5/8 in, Housing Material Metal, Includes Mounting Brackets, Maximum Current 20 A, Overall Height 1 3/4 in
