- Item

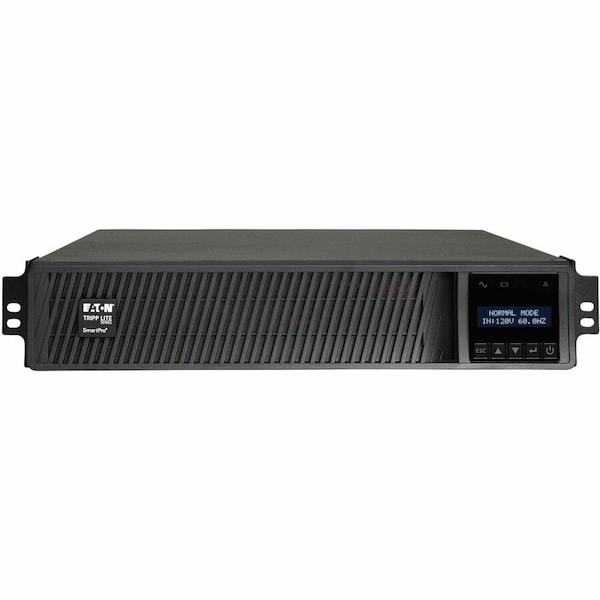

- Smart UPS
- VA Rating - UPS Systems
- 2.2 kVA
- UPS Type
- Line Interactive
- Power Rating
- 1.95kVA
- Mounting
- Rack/Tower
- Wattage
- 1.95 kW
- Input Voltage
- 120V AC
- Output Voltage
- 100/110/120/125V AC
- Backup Time (Half/Full Load)
- 12 min/4 min
- Outlet Type
- (4) Surge; (4) UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 8
- Includes
- (4) Post Rack Mount Installation Kits, PowerAlert Software with USB, Serial and EPO Cables
- Automatic Volts Regulation
- Yes
- Hz
- 60 Hz
- Transfer Time
- 2 to 4 msec
- NEMA Receptacle Configuration
- (4) 5-15R; (4) 5-15/20R
- Special Features
- Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output, Extended Runtime w/BP48V24-2U and BP48V60RT-3U
- Display Type
- LCD
- Fax/Modem Line Protection
- No
- Footnotes
- 1,2,3,4,10,12
- Ports
- DB9 Serial, EPO, SNMP/Web Slot, USB (HID Enabled)
- NEMA Plug Configuration
- 5-20P
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Input Current
- 16 A
- Standards
- CE (Europe), CSA (Canada), ENERGY STAR Qualified, FCC Part 15 Class B (USA), UL1778
- Phase
- Single
- Voltage
- 120
- Operating Temp. Range
- 104°F (40°C)
- Capacity - Batteries
- 2200 VA/1920 W
- Input Connection
- 10 ft Cord with NEMA 5-20P Plug
- Battery Type
- VRLA
- Housing Material
- Polycarbonate
- Nominal Input Voltage(s) Supported
- 120V AC
- Battery Recharge Rate (Included Batteries)
- Less than 4.5 hours from 10% to 90% (typical, full load discharge)
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Overvoltage Correction
- Voltage reduction of 12% applies when input is between 127 and 145
- Battery Access
- Front panel battery access door
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Battery Mode BTU / Hr. (Full Load)
- 1157
- Internal UPS Replacement Battery Cartridge
- RBC94-2U
- UPS AC Suppression Response Time
- Instantaneous
- Recommended Electrical Service
- 20A 120V
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Expandable Runtime
- Yes
- Switches
- 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- High Availability UPS Features
- Hot swappable batteries
- Grounding Lug
- Back panel grounding lug
- Audible Noise
- 45 dBA maximum, front side 1m
- Output Capacity Details
- Output is reduced to 1600 watts maximum when used with external battery packs
- Primary Form Factor
- Rackmount
- AC Mode BTU / Hr. (Full Load)
- 306
- Output Watt Capacity (Watts)
- 1920
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Load Management Receptacles
- Two switched single outlet load banks (1 5-15/20R & 1 5-15R)
- Output Volt Amp Capacity (VA)
- 2200
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
- Severe Undervoltage Correction
- Voltage boost of 24% applies when input voltage is between 83 and 95
- Cooling Method
- Fan
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
- Half Load Runtime (min.)
- 12 min. (960w)
- Undervoltage Correction
- Voltage boost of 12% applies when input voltage is between 96 and 108
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Output Voltage Regulation (Line Mode)
- -14%, +6%
- Rated input current (Maximum Load)
- 16.0A
- AC Mode Efficiency Rating (100% Load)
- 0.96
- DC System Voltage (VDC)
- 48
- Communications Interface
- USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Individually Controllable Load Banks
- Yes
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- External Battery Pack Compatibility
- BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
- Input Phase
- Single-Phase
- Output kVA Capacity (kVA)
- 2.2
- Low Voltage Transfer to Battery Power (Setpoint)
- 83
- Communications Cable
- USB and DB9 cabling included
- Output kW Capacity (kW)
- 1.92
- UPS AC Suppression Joule Rating
- 570
- Full Load Runtime (min.)
- 4.5 min. (1920w)
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- Expandable Runtime Description
- Maximum output capacity is 1600 watts when used with external battery packs
- Power Factor
- 0.87
- EMI / RFI AC Noise Suppression
- Yes
- Serial Port
- Yes
- Hot Swappable
- Yes
- Network Management
- SNMP Manageable
- Alarm
- On Battery, Overload, Low Battery
- Maximum Operating Temperature
- 104°F (40°C)
- USB
- Yes
- Package Contents
- SMART2200RMXL2U UPS System, Poweralert Software CD-ROM, USB, Serial And EPO Cabling, Owner's Manual
- Protection Type
- Under Voltage, Over Voltage
- Emergency Power OFF
- Yes
- Load Capacity
- 1950 VA/1950 W
- Status Indicators
- 5 Front Panel Leds: Green Power Led, Green Voltage Correction Led, 3 Color Battery Charge Led, 3 Color Output Load Led, Red Battery Warning Led
- Waveform Type
- Sine Wave
- Typical Battery Recharge Time
- 4.50 Hour
- Operating Temperature - Maximum
- 104 Degrees F
- Receptacle Configuration
- 5-15R, 5-20R
- Operating Temperature - Minimum
- 32 Degrees F
- Surge Suppression Rating
- 380 J
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage
- Number of Outlets - Surge Only
- 7
- Power Rating - Real
- 1.6 kW
- Power Rating - Apparent
- 2.2 kVA
- Frequency
- 60 Hz
- Plug Configuration
- 5-20P
- Input Current - Maximum
- 16 A
- Battery Recharge Time
- 4.5 hr
- Manufacturer Warranty
- 2 yr, 3 yr Registration
- Transfer Time - Minimum
- 1 msec
- Includes Battery
- Battery Included
- Battery Chemistry
- Valve Regulated Lead Acid
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Output Ports Included
- DB9 Serial, EPO, SNMP, USB
- External Battery Compatible
- External Battery Pack Compatible
- Number of Outlets - UPS
- 7
- Data Line Protection
- Includes Data Line Surge Protection
- Run Time - Full Load
- 4 min
- Transfer Time - Maximum
- 4 msec
