- VA Rating - UPS Systems
- 1.0 kVA
- Item
- Smart UPS
- UPS Type
- Line Interactive
- Power Rating
- 1kVA
- Mounting
- Rack
- Wattage
- 800 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V
- Backup Time (Half/Full Load)
- 14 min/4 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 6
- Ports
- DB9 Serial, EPO, SNMP/Web Slot, USB
- Automatic Volts Regulation
- Yes
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Input Current
- 9.2 A
- Includes

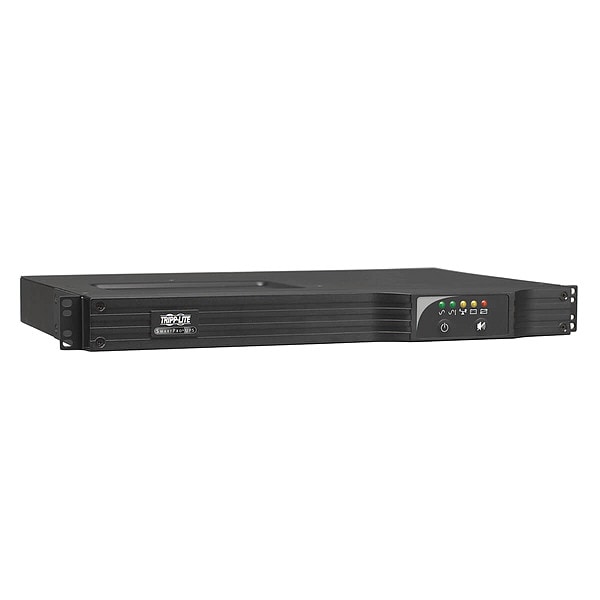

- DB9 Cable, EPO Cables, Mounting Hardware, SMART1000RM1U SmartPro120V 1kVA 800W Line-Interactive Sine Wave UPS, USB Cables
- NEMA Receptacle Configuration
- (6) 5-15R
- Phase
- Single
- Special Features
- Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output
- Standards
- CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
- Footnotes
- 3,4,10,12
- Hz
- 60 Hz
- Display Type
- LED
- NEMA Plug Configuration
- 5-15P
- Transfer Time
- 2 to 4 msec
- Fax/Modem Line Protection
- No
- Voltage
- 120
- Capacity - Batteries
- 1000 VA/800 W
- For Use with
- VoIP Phone System, Data Center, Computer
- Input Connection
- 10 ft Cord with NEMA 5-15P Plug
- Housing Material
- Steel
- Battery Type
- VRLA
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Output Volt Amp Capacity (VA)
- 1000
- Low Voltage Transfer to Battery Power (Setpoint)
- 83
- Cooling Method
- Fan
- High Voltage Transfer to Battery Power (Setpoint)
- 147
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- AC Mode Efficiency Rating (100% Load)
- 0.99
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communications ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Input Phase
- Single-Phase
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
- Undervoltage Correction
- Input voltages between 83 and 107 are boosted by 14%
- Expandable Runtime
- No
- Communications Interface
- USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- LED Indicators
- 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
- DC System Voltage (VDC)
- 24
- Battery Access
- Front panel battery access door
- Primary Form Factor
- Rackmount
- High Availability UPS Features
- Hot swappable batteries
- Output kVA Capacity (kVA)
- 1
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- UPS Certification Details
- UL 1778: 2014 R8.15 (5TH Edition); CAN/CSA-C22.2 NO. 107.3-14
- Included Mounting Accessory Description
- Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
- EMI / RFI AC Noise Suppression
- Yes
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- Nominal Input Voltage(s) Supported
- 120V AC
- Audible Alarm
- Audible alarm indicates power-failure, overload and low-battery conditions
- Grounding Lug
- Back panel grounding lug
- Battery Recharge Rate (Included Batteries)
- 4.5 hours from 10% to 90% (typical, full load discharge)
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Overvoltage Correction
- Input voltages between 128 and 147 are reduced by 12%
- Audible Noise
- 45 dBA maximum, front side 1m
- Output Watt Capacity (Watts)
- 800
- Communications Cable
- USB and DB9 cabling included
- AC Suppression Response Time
- Instantaneous
- Half Load Runtime (min.)
- 14 min. (400w)
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Output Voltage Regulation (Line Mode)
- -21%, +8%
- Installation Form Factors Supported with Included Accessories
- 2 post 19 inch rackmount; 4 post 19 inch rackmount
- Full Load Runtime (min.)
- 4 min. (800w)
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- Yes
- Recommended Electrical Service
- 15A 120V
- Load Management Receptacles
- Two switchable single-outlet 5-15R load banks
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- Relative Humidity
- 0 to 95%, non-condensing
- UPS AC Suppression Joule Rating
- 450
- Input Circuit Breakers
- 15A
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Rated input current (Maximum Load)
- 9A
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Power Factor
- 0.8
- AC Mode BTU / Hr. (Full Load)
- 39
- Installation Form Factors Supported with Optional Accessories
- 4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM )
- Internal UPS Replacement Battery Cartridge
- RBC69-1U
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Package Contents
- SmartPro 1000RM1U UPS, SMART 1000RM1U UPS System, Mounting hardware, Cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/Power monitoring software, Warranty information and instruction manual
- Waveform Type
- Pure Sinusoidal
- Form Factor
- Rack-mountable
- Typical Battery Recharge Time
- 4.50 Hour
- Application/Usage
- Data Center, Computer, VoIP Phone System
- Load Capacity
- 1000 VA/800 W
- Hot Swappable
- Yes
- Product Certifications
- CSA (Canada); NOM (Mexico); UL 1778
- Product Compliance
- FCC Part 15 Class A (USA)
- Output Capacity (VA)
- 1000
- Package Includes
- SMART1000RM1U SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;EPO cable;Mounting hardware;Owner's manual
- Output Capacity (Watts)
- 800
- UPS Applications
- Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
- Grounding Details
- Back panel grounding lug
- Manufacturer Warranty
- 2 yr
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage
- Transfer Time - Maximum
- 5 msec
- Frequency
- 60 Hz
- Number of Outlets - Surge Only
- 6
- Operating Temperature - Minimum
- 32 Degrees F
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Transfer Time - Minimum
- 1 msec
- Receptacle Configuration
- 5-15R
- Battery Recharge Time
- 4.5 hr
- Includes Battery
- Battery Included
- External Battery Compatible
- Not External Battery Pack Compatible
- Number of Outlets - UPS
- 6
- Surge Suppression Rating
- 450 J
- Power Rating - Apparent
- 1 kVA
- Data Line Protection
- Includes Data Line Surge Protection
- Run Time - Full Load
- 4 min
- Battery Chemistry
- Valve Regulated Lead Acid
- Power Rating - Real
- 800 W
- Output Ports Included
- DB9 Serial, EPO, SNMP, USB
- Plug Configuration
- 5-15P
- Operating Temperature - Maximum
- 104 Degrees F
- Input Current - Maximum
- 9.2 A
