UPS Type
Line Interactive
Backup Time (Half/Full Load)
23 min/7 min
Standards
UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico)
NEMA Receptacle Configuration
(4) 5-15R; (4) 5-15/20R
NEMA Plug Configuration
L5-30P
Package Contents

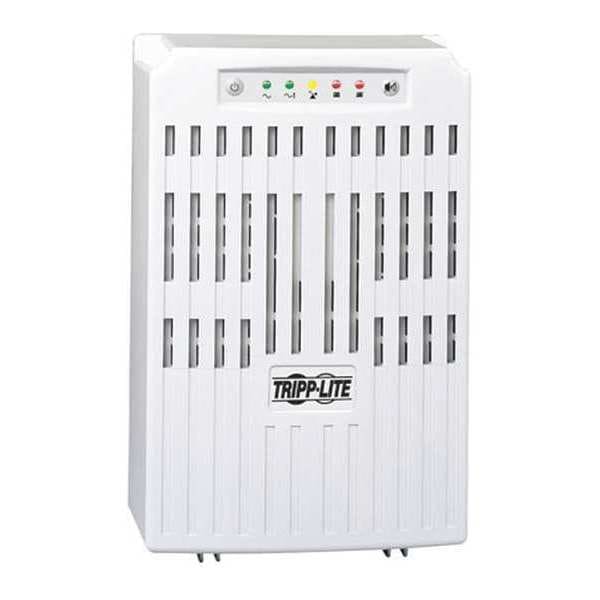

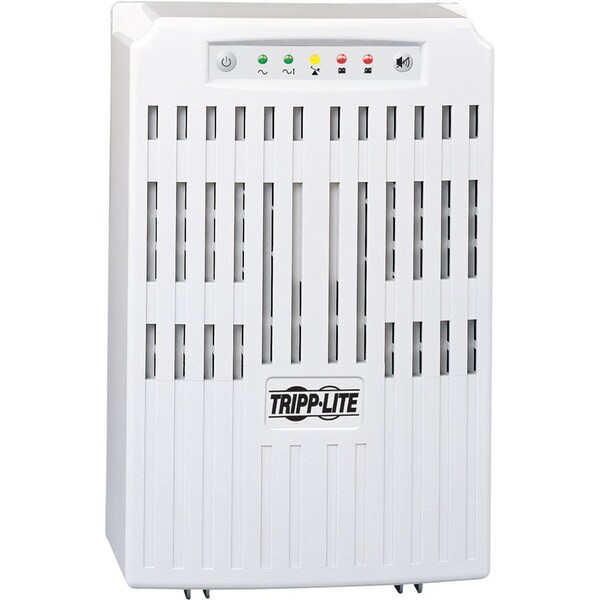

SmartPro SM3000NAFTA 3000VA Tower UPS, SMART3000NET UPS System, PowerAlert Software and three 6 foot network cables, Warranty information, Instruction manual
Typical Battery Recharge Time
4 Hour
Load Capacity
3000 VA/2400 W
Software Included
PowerAlert UPS Monitoring Software
Additional Information
Line Mode: Sine wave line voltage 120V (-13% / +5%), Battery Mode: PWM sine wave output 120V +/-5%
Recommended Electrical Service
30A 120V
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Output AC Waveform (Battery Mode)
PWM sine wave
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140
Severe Undervoltage Correction
Input voltages between 87 and 94 are boosted by 22%
External Battery Pack Compatibility
BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
Load Management Receptacles
Three switchable single-outlet 5-15R load banks
Rated input current (Maximum Load)
22A
Output Capacity (VA)
3000
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Communications Cable
3 DB9 cables included
Overvoltage Correction
Input voltages between 127 and 140 are reduced by 12%
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total)
Output Circuit Breakers
15A branch rated (x2) - each breaker protects 4 outlets
UPS AC Suppression Joule Rating
480
AC Mode BTU / Hr. (Full Load)
82.4
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load
1219.3
Low Voltage Transfer to Battery Power (Setpoint)
87
Relative Humidity
0 to 95%, non-condensing
Nominal Output Voltage(s) Supported
120V
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands
Output Capacity (Watts)
2400
Primary Form Factor
Tower
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
UPS AC Suppression Response Time
Instantaneous
Output Voltage Regulation (Battery Mode)
+/- 5%
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
EMI / RFI AC Noise Suppression
Yes
Output Voltage Regulation (Line Mode)
-13% / +5%
Package Includes
SMART3000NET UPS System;PowerAlert Software and three 6 foot network cables;Warranty information;Instruction manual
DC System Voltage (VDC)
24
Nominal Input Voltage(s) Supported
120V AC
Battery Recharge Rate (Included Batteries)
Less than 9 hours from 10% to 90%
High Voltage Transfer to Battery Power (Setpoint)
140
AC Mode Efficiency Rating (100% Load)
0.99
Communications Interface
DB9 Serial; Contact closure
Installation Form Factors Supported with Included Accessories
Tower
Undervoltage Correction
Input voltages between 95 and 105 are boosted by 10%
Outlet Type
4 x NEMA 5-15/20R
