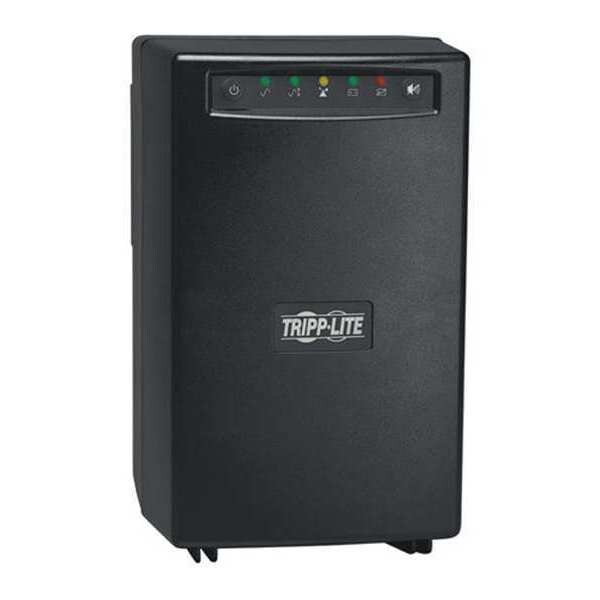

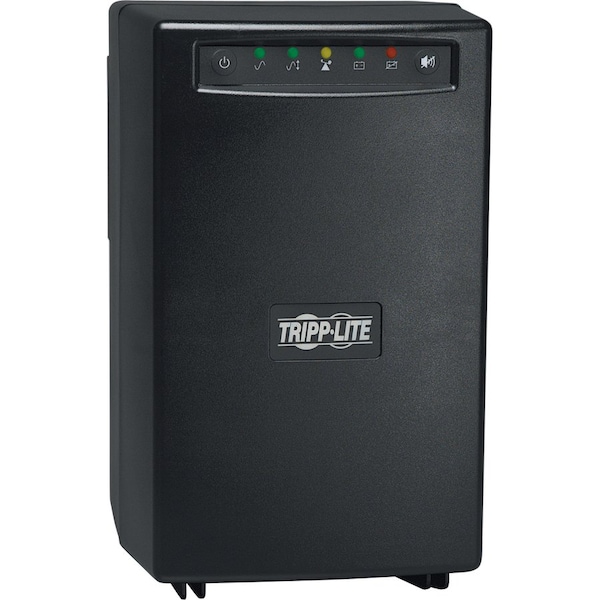

- Item
- Smart UPS
- UPS Type
- Line Interactive
- Power Rating
- 750VA
- Mounting
- Tower
- Wattage
- 500 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V AC
- Backup Time (Half/Full Load)
- 31.3 min/13.5 min
- Outlet Type
- (6) 5-15R
- Number of Outlets
- 6
- NEMA Receptacle Configuration
- (6) 5-15R
- NEMA Plug Configuration
- 5-15P
- Transfer Time
- 2-4 milliseconds
- Hz
- 60 Hz
- Battery Type
- VRLA
- Housing Material
- PVC
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Overvoltage Correction
- Input voltages between 128 and 143V are reduced by 9%
- Communications Cable
- USB cable included
- Individually Controllable Load Banks
- No
- High Availability UPS Features
- Hot swappable batteries
- Cooling Method
- Fan
- Battery Recharge Rate (Included Batteries)
- Less than 4.5 hours from 10% to 90%
- Output Volt Amp Capacity (VA)
- 750
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Surge Voltage Withstand Capability
- ANSI/IEEE C62.41 Categories A & B 6KV/200/500 amp 100Khz Ringwave and category B BiWave
- Installation Form Factors Supported with Included Accessories
- Tower
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
- High Voltage Transfer to Battery Power (Setpoint)
- 143
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Audible Alarm
- Audible alarm indicates power-failure and low-battery conditions
- Surge Voltage Attenuation
- N-G 2000:1, L-G 240:1, L-N 100:1
- Full Load Runtime (min.)
- 13.5 min. (500w)
- Output Isolation Transformer
- Professional grade load isolation transformer
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Rated input current (Maximum Load)
- 5.5A
- Recommended Electrical Service
- 15A 120V
- Expandable Runtime
- No
- Internal UPS Replacement Battery Cartridge
- RBC53
- UPS AC Suppression Response Time
- Instantaneous
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- UPS AC Suppression Joule Rating
- 510
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- EMI / RFI AC Noise Suppression
- Yes
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Severe Undervoltage Correction
- Input voltages between 81 and 96V are boosted by 21%
- Battery Access
- Battery access door
- DC System Voltage (VDC)
- 36
- Output Voltage Regulation (Line Mode)
- -18%, +8%
- Output Watt Capacity (Watts)
- 500
- AC Mode Efficiency Rating (100% Load)
- 0.91
- Nominal Input Voltage(s) Supported
- 120V AC
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Half Load Runtime (min.)
- 31.3 min. (250w)
- LED Indicators
- 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
- Installation Form Factors Supported with Optional Accessories
- Wallmount (UPSWM - tower mounting kit)
- Insertion Loss
- 65 db N-G from 10Khz to 100Khz, 45 to 60 db L-G from 10Khz to 100Khz, 18 to 54 db L-N from 50Khz to 500 Khz
- PowerAlert Software
- For local monitoring via the UPS™s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI)
- Input Phase
- Single-Phase
- Low Voltage Transfer to Battery Power (Setpoint)
- 81
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- Undervoltage Correction
- Input voltages between 97 and 107V are boosted by 10%
- Primary Form Factor
- Tower
- Communications Interface
- USB
- USB
- Yes
- Load Capacity
- 750 VA
- Package Contents
- OmniSmart 750 VA UPS, OMNI750ISO UPS system, USB cable, User manual with warranty information
- Package Includes
- OMNI750ISO UPS system;USB cable;Instruction manual
- Output Capacity (Watts)
- 500
- UPS Applications
- High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
- Output Capacity (VA)
- 750
- Product Certifications
- CSA (Canada); UL 1778
- Product Compliance
- FCC Part 15 Class B (USA)
