- Item
- UPS System
- VA Rating - UPS Systems
- 1.0 kVA
- UPS Type
- Online/Double Conversion
- Power Rating
- 1kVA
- Mounting
- Rack
- Wattage
- 900 W
- Input Voltage
- 100/115/120/127V AC
- Output Voltage
- 100/110/115/120/127V AC
- Backup Time (Half/Full Load)
- 18.2 min/6.3 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 6
- Hz
- 50/60 Hz
- Fax/Modem Line Protection
- Yes
- Phase
- Single
- Automatic Volts Regulation
- Yes
- Special Features
- Hot-Swappable Batteries
- Standards
- CSA (Canada), ENERGY STAR Qualified, FCC Part 15 Class B (USA), RoHS, UL1778
- Transfer Time
- 0 msec
- NEMA Receptacle Configuration
- (6) 5-15R
- NEMA Plug Configuration
- 5-15P
- Includes
- (4) Post Rack Mounting Hardware, EPO Cables, RS-232 Cable, USB Cables
- Ports
- DB9 Serial, EPO, USB
- Display Type
- LCD
- Input Current
- 8.6 A
- Capacity - Batteries
- 1000 VA/900 W
- Input Connection
- NEMA 5-15P Plug
- Housing Material
- Steel
- Battery Type
- VRLA
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Power Factor
- 0.9
- Input Circuit Breakers
- 15A
- Undervoltage Correction
- Corrects undervoltages to 100V at full load (90V at 100V nominal)
- External Battery Pack Compatibility
- BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible); BP24V36-2US (multi-pack compatible)
- Overvoltage Correction
- Corrects overvoltages to 150V (0-100% load)
- AC Economy Mode BTU / Hr. (Full Load)
- 231
- Cooling Method
- Fan
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- AC Economy Mode Efficiency Rating (100% Load)
- 0.93
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- UPS AC Suppression Response Time
- Instantaneous
- Recommended Electrical Service
- 15A 120V
- Battery Access
- Front panel battery access
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- UPS Certifications
- ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to UL1778 (USA)
- AC Mode BTU / Hr. (Full Load)
- 341
- Battery Mode BTU / Hr. (Full Load)
- 585
- Output Voltage Regulation (Battery Mode)
- +/- 3%
- Full Load Runtime (min.)
- 4.8 min. (900w)
- Nominal Input Voltage Description
- 120V factory default
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Output Watt Capacity (Watts)
- 900
- UPS AC Suppression Joule Rating
- 570
- Individually Controllable Load Banks
- No
- Communications Interface
- USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
- Load Management Receptacles
- Two switchable single-outlet 5-15R load banks
- Low Voltage Transfer to Battery Power (Setpoint)
- 100V at full load (90V full load at 100V nominal setting); 70V at 70% load; 55V at 33% load
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Battery Recharge Rate (Included Batteries)
- Less than 3 hours recharge to 90% (typical, full load discharge)
- Relative Humidity
- 0 to 95%, non-condensing
- High Availability UPS Features
- Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries
- Half Load Runtime (min.)
- 14 min. (450w)
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Nominal Input Voltage(s) Supported
- 100V AC; 110V AC; 115V AC; 120V AC; 127V AC
- Output Capacity Details
ON LINE MODE: Maximum output capacity is reduced to 608 watts at 100V nominal; FREQUENCY / REGULATION CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120/115/110V 630 watts / 100V 567 watts). OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
- Voltage Regulation Description
- Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltages
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
- Primary Form Factor
- Rackmount
- Expandable Runtime
- Yes
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Output kVA Capacity (kVA)
- 1
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Rated input current (Maximum Load)
- 8.6A
- Output kW Capacity (kW)
- 0.9
- EMI / RFI AC Noise Suppression
- Yes
- Switches
- 2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- LED Indicators
- 7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation and AC output status
- DC System Voltage (VDC)
- 24
- Nominal Output Voltage(s) Supported
- 100V; 110V; 115V; 120V; 127V
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- Input Phase
- Single-Phase
- High Voltage Transfer to Battery Power (Setpoint)
- 150
- Frequency Compatibility Details
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz.
- Expandable Runtime Description
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
- Output Volt Amp Capacity (VA)
- 1000
- Internal UPS Replacement Battery Cartridge
- RBC24V-LCD
- Audible Noise
- 45 dBA at 1m front side
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Crest Factor
- 0.125694444444444
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Operating Elevation (m)
- Up to 3000m
- Communications Cable
- USB and DB9 cabling included
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Severe Undervoltage Correction
- Corrects brownouts to 70V (70% load) & 55V (33% load)
- Form Factor
- Rack/Tower
- Bypass Switch
- Automatic
- Load Capacity
- 1000 VA/900 W

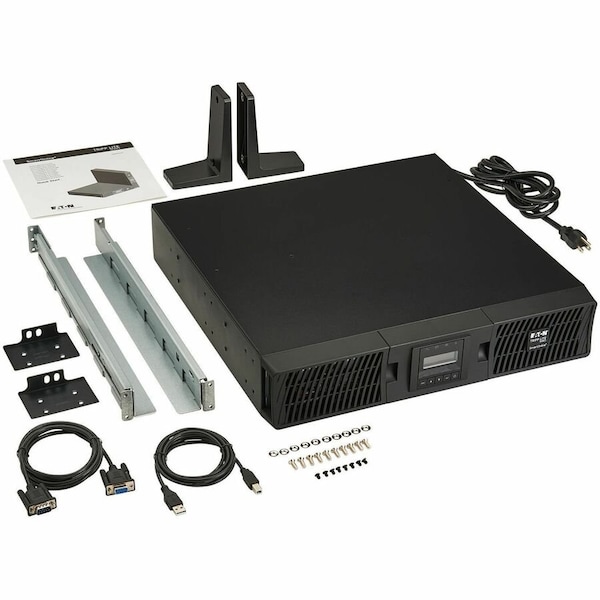

- Package Contents

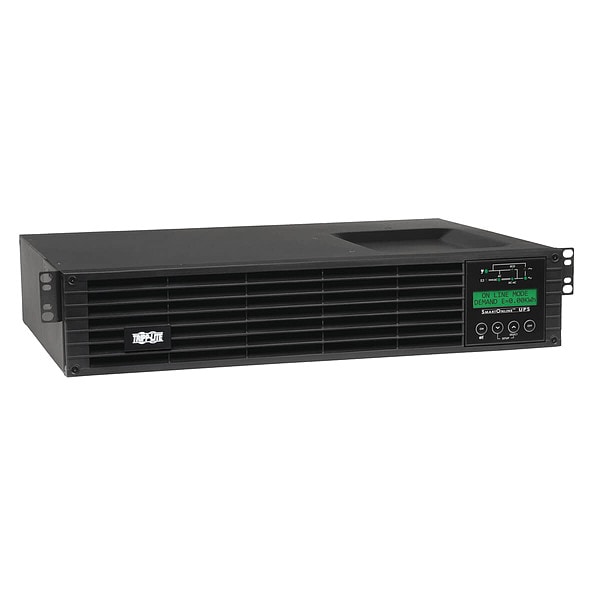

- SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS, PowerAlert UPS Monitoring Software CD, USB Cable, Serial Cable, EPO Cable, 4 Post Rackmount Installation Kit, Instruction Manual
- Emergency Power OFF
- Yes
- Software Included
- PowerAlert UPS Monitoring Software
- Serial Port
- Yes
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- USB
- Yes
- Network Management
- SNMP Manageable
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup
- Number of Outlets - UPS
- 6
- External Battery Compatible
- External Battery Pack Compatible
- Power Rating - Real
- 900 W
- Number of Outlets - Surge Only
- 6
- Receptacle Configuration
- 5-15R
- Operating Temperature - Maximum
- 104 Degrees F
- Frequency
- 50/60 Hz
- Input Current - Maximum
- 8.6 A
- Plug Configuration
- 5-15P
- Includes Battery
- Battery Included
- External Battery Pack Part Number
- BP24V15RT2U, BP24V28-2U, BP24V36-2US, BP24V70-3U
- Power Rating - Apparent
- 1 kVA
- Battery Recharge Time
- 3 hr
- Replacement Battery Part Number
- RBC24V-LCD
- Transfer Time - Maximum
- 0 msec, 4 msec
- Operating Temperature - Minimum
- 32 Degrees F
- Manufacturer Warranty
- 2 yr
- Output Ports Included
- DB9 Serial, EPO, USB
- Surge Suppression Rating
- 570 J
- Run Time - Full Load
- 4.8 min
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Battery Chemistry
- Valve Regulated Lead Acid
