- Item

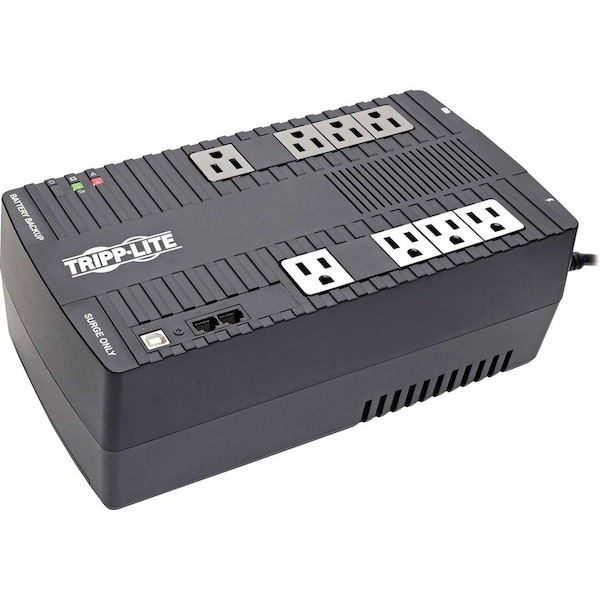

- UPS System
- VA Rating - UPS Systems
- 550.0 VA
- UPS Type
- Line Interactive
- Power Rating
- 550VA
- Mounting
- Desktop/Tower
- Wattage
- 300 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V AC
- Backup Time (Half/Full Load)
- 9 min/2 min
- Outlet Type
- (4) Surge; (4) UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 8
- NEMA Receptacle Configuration
- (8) 5-15R
- Ports
- USB (HID enabled)
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Input Current
- 12 A
- Includes
- USB Cables
- Phase
- Single
- Automatic Volts Regulation
- Yes
- Special Features
- Audible Alarm, Front Panel LED's Regarding Line And Battery Operation, Mountable Housing, Poweralert Software
- Transfer Time
- 2 to 4 msec
- Hz
- 60 Hz
- Standards
- CSA, FCC Part 15 Class A, NOM, RoHS, UL1778
- NEMA Plug Configuration
- 5-15P
- Display Type
- No Display
- Fax/Modem Line Protection
- Yes
- Footnotes
- 4,6
- Capacity - Batteries
- 550 VA/300 W
- For Use with
- Home/Office, Media Center, Home Theater, Security System, Gaming Console, Printer, Blu-ray Player, TV, ATM, Speaker, Computer, Digital Signage, Router
- Housing Color
- Black
- Operating Temp. Range
- 104°F (40°C)
- Voltage
- 120
- Input Connection
- 6 ft Cord with NEMA 5-15P Plug
- Housing Material
- ABS
- Battery Type
- VRLA
- Grounding Lug
- Includes side-panel grounding lug
- EMI / RFI AC Noise Suppression
- Yes
- Operating Elevation (ft.)
- Up to 10,000 ft.
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Battery Access
- Battery access door
- Output Volt Amp Capacity (VA)
- 550
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Storage Temperature Range
- +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
- Battery Recharge Rate (Included Batteries)
- 8 hours (10% to 90%)
- Relative Humidity
- 0 to 90%, non-condensing
- Nominal Input Voltage(s) Supported
- 120V AC
- Undervoltage Correction
- Input voltages between 89 and 108 are boosted by 18%
- Individually Controllable Load Banks
- No
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Voltage Regulation (Line Mode)
- 120V (+6%/-12%)
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- UPS Certification Details
- UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
- Rated input current (Maximum Load)
- 6A
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- High Availability UPS Features
- Battery Independent Restart
- DC System Voltage (VDC)
- 12
- Expandable Runtime
- No
- Switches
- Power off/on switch
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Internal UPS Replacement Battery Cartridge
IMPORTANT BATTERY REPLACEMENT INFORMATION > If the original battery inside your AVR550U UPS has a rating of 12V 7AH, please order Tripp Lite RBC51 (quantity 1) replacement battery; If the original battery inside your AVR550U UPS has a rating of 12V 5AH or 12V 3.6AH, please contact Tripp Lite for assistance
- Overvoltage Correction
- Input voltages between 128 and 145 are reduced by 15%
- Output Watt Capacity (Watts)
- 300
- High Voltage Transfer to Battery Power (Setpoint)
- 145
- Battery Replacement Description
- Replaceable internal batteries (see manual)
- Network UPS Tools Compatibility
- Yes
- Input Phase
- Single-Phase
- Communications Interface
- USB (HID enabled)
- UPS AC Suppression Joule Rating
- 316
- Communications Cable
- USB interface cable included
- Primary Form Factor
- Desktop
- LED Indicators
- 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions (see manual)
- Half Load Runtime (min.)
- 9 min. (150W)
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
- Audible Alarm
- UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
- Low Voltage Transfer to Battery Power (Setpoint)
- 89
- UPS Dataline Suppression
- 1 line TEL/DSL or Ethernet
- Full Load Runtime (min.)
- 2 min. (300W)
- UPS AC Suppression Response Time
- Instantaneous
- AC Mode BTU / Hr. (Full Load)
- 61
- Output Voltage Regulation (Battery Mode)
- 120V (±10%)
- Operating Elevation (m)
- Up to 3000m
- Recommended Electrical Service
- 15A 120V
- Input Circuit Breakers
- 7A
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- AC Mode Efficiency Rating (100% Load)
- >95%
- Software Included
- PowerAlert UPS monitoring software
- Number of Battery & Surge Outlets
- 4
- USB (HID Compliant) Port
- Yes
- Package Contents
- Desktop/Wall Mount Battery Backup Outlets, USB cable, Owner's manual
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Load Capacity
- 550 VA/300 W
- Application/Usage
- Gaming Console, Security System, ATM, Computer, Router, Home Theater, Media Center, Home/Office, Blu-ray Player, TV, Printer, Speaker, Digital Signage
- Product Series
- AVR
- EMI/RFI Noise Filter
- Yes
- Dataline Protection
- RJ-11
- Energy Saving
- Greater than 95% efficiency - GREEN UPS
- Maximum Operating Temperature
- 104°F (40°C)
- Alarm
- Low Battery, Fault, Overload, Battery Backup, Replace Battery
- Additional Information
Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher, High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less, Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure, Switches: Combination power off / on / self-test push button switch, Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices., WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications, Supports entry-level PC systems up to 17 minutes during blackout conditions, Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation, 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets, 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power, 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support, HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
- Form Factor
- Ultra-compact Desktop/Tower/Wall Mount
- AVR Range
- Boost +18% / Buck -15%
- Output Frequency
- 60 Hz
- AVR
- Yes
- Surge Energy Rating
- 316 J
- Typical Battery Recharge Time
- 8 Hour
- Battery Life
- 6 Year
- Replaceable Battery
- Yes
- USB
- Yes
- Waveform Type
- Pulse-width Modulated Sine Wave
- Maximum Operating Elevation
- 10000 ft
- Status Indicators
- 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
- Input Frequency
- 60 Hz
- Assembly Required
- No
- Output Capacity (VA)
- 550
- Output Capacity (Watts)
- 300
- Grounding Details
- Includes side-panel grounding lug
- Product Compliance
- FCC Part 15 Class A (USA)
- UPS Applications
- Home/Office Desktop; Retail/Point of Sale; Hospitality
- Package Includes
- AVR550U 550VA 300W 120V Line-Interactive UPS with 8 Outlets;USB cable;Owner's manual
- Product Certifications
- RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
- Operating Temperature - Minimum
- 32 Degrees F
- Number of Outlets - UPS
- 4
- Visible Indicator Light Conditions
- Battery Low, Fault, Overload, Power Status, Replace Battery
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Transfer Time - Minimum
- 6 msec
- Power Rating - Apparent
- 550 VA
- Power Rating - Real
- 300 W
- Manufacturer Warranty
- 3 yr Limited
- Operating Temperature - Maximum
- 104 Degrees F
- Plug Configuration
- 5-15P
- Transfer Time - Maximum
- 10 msec
- Run Time - Full Load
- 2 min
- Data Line Protection
- Includes Data Line Surge Protection
- Battery Chemistry
- Valve Regulated Lead Acid
- Audible Alarm Conditions
- Low Battery, Overload, Replace Battery
- Input Current - Maximum
- 6 A
- Frequency
- 50/60 Hz
- Receptacle Configuration
- 5-15R
- External Battery Compatible
- Not External Battery Pack Compatible
- Number of Outlets - Surge Only
- 4
- Surge Suppression Rating
- 316 J
- Output Ports Included
- USB
- Replacement Battery Part Number
- RBC51
- Includes Battery
- Battery Included
- Battery Recharge Time
- 8 hr
