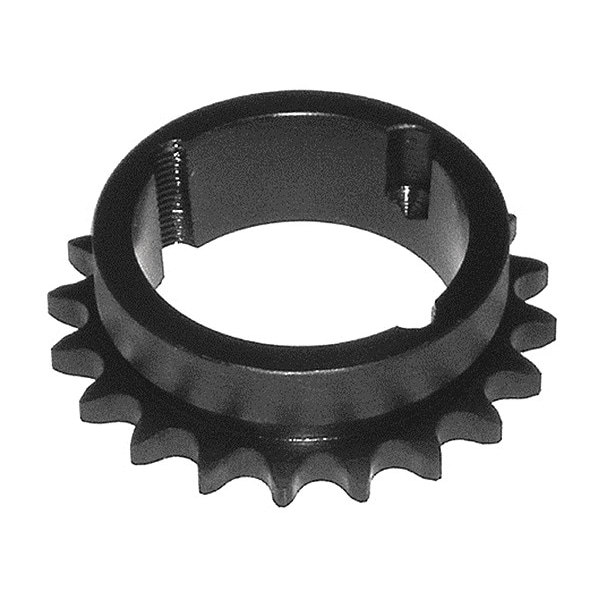

BushedRlrChnSprkt, SplitTaper, 2012, 5/8in
- Mfr # 50BTL23H
- Zoro # G7874992
product price:Â
$
53.95
/ea
Key Features
Material
Steel
Number of Teeth
23
Outside Dia.
4.92 in
Chain Number
50
Pitch Dia.
4.59 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 50BTL23H
- Zoro #
- G7874992
- UPC #
- 888569101556
- Country of Origin
- China
- Item
- Bushed Roller Chain Sprocket
- Material
- Steel
- Number of Teeth
- 23
- Chain Number
- 50
- Temp. Range (F)
- -50 Degrees to 500 Degrees F
- Pitch
- 5/8"
- Material - Sprockets
- Steel
- Item - Roller Chain Sprockets
- Roller Chain Sprocket
- Bushing Required - Sprockets
- 2012
- Number of Chain Rows
- Single
- Number of Teeth - Sprockets
- 23
- Sprocket Bore Type
- Taper-Lock(R) Bushed Bore
- Bushing Code
- 2012
- For Bushing Type
- Split Taper
- For Number of Strands
- Single
- For Chain Pitch
- 5/8 in
- Standards
- ANSI B29.1, BIS
- Hub Type
- One Side
- Teeth Heat Treatment
- Hardened Teeth
- Hub Projection
- 0.907 in
- Finish
- Black Oxide
- Shell Material
- Steel
Dimensions
- Outside Dia.
- 4.92 in
- Pitch Dia.
- 4.59 in
- Industry Chain Size
- 50
- Length through Bore
- 1 1/4 in
- Outside Diameter
- 4.92 in
- Maximum Bore Diameter
- 2 in
- Pitch Diameter
- 4.59 in
- Hub Diameter
- 3 5/8 in
- For Bushing Size
- 2012
- Tooth Width
- 0.343 in
Description
Bushed Roller Chain Sprocket, For Bushing Size 2012, For Bushing Type Split Taper, For Chain Pitch 5/8 in, Material Steel, Number of Teeth 23, Outside Diameter 4.92 in, Pitch Diameter 4.59 in, Chain Number 50, For Number of Strands Single, Maximum Bore Diameter 2 in, Finish Black Oxide, Hub Diameter 3 5/8 in, Hub Projection 0.907 in, Hub Type One Side, Length through Bore 1 1/4 in, Standards ANSI B29.1, BIS, Teeth Heat Treatment Hardened Teeth, Tooth Width 0.343 in
