  11. Flange Bearing, 3-Bolt, Ball, 1" Bore
Shop All Flange Bearings
Tritan

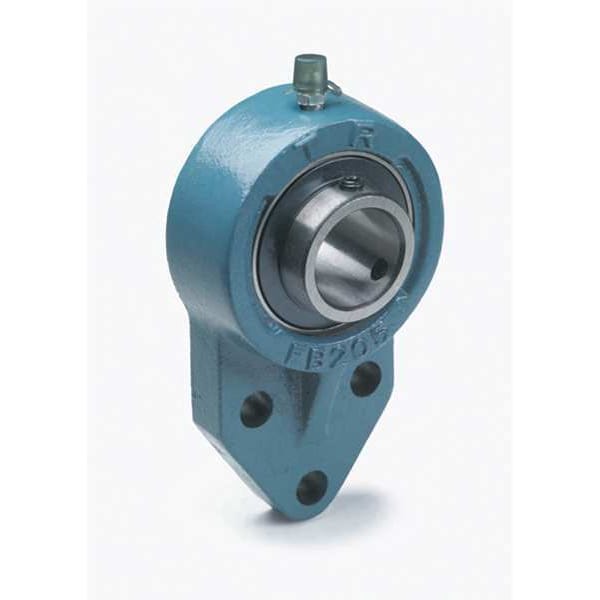

Flange Bearing, 3-Bolt, Ball, 1" Bore

product price: $25.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 1"
  • Shaft Locking Type Set Screw
  • Bearing Housing Material Type Cast Iron
  • Bearing Insert Material 52100 Steel
See all product information

Product Information

Dimensions

Bore Dia. 1"
Bolt Size 5/16 in
Overall Height 1 27/64 in
Overall Length 4.75 in
Overall Width 2.75 in
Mount Hole Center-to-Center Length 1.625 in
Mounting Bolt Size 5/16 in
Bore Diameter 1 in
Mount Hole Size 3/8 in
Mount Hole Center-to-Center Height 1.125 in

Details

Bearing Insert Type Radial Ball
Shaft Locking Type Set Screw
Bearing Housing Material Type Cast Iron
Bearing Insert Material 52100 Steel
Bolt Hole Center-to-Center 1.6260"
Series UCFB
Static Load Capacity 1764 Lbf
Dynamic Load Capacity 3147 Lbf
Finish Painted
Bearing Lubrication Shell Alvania RL2 or NLGI #2 Equivalent
Locking Type Set Screw
Item 3 Bolt Flange Bearing
Temp. Range -4 to +248° F
Standards AFBMA, ISO Certified
Housing Material Cast Iron
Closure Double Sealed
Seal Material Rubber
Rolling Element Rows 1
Maximum Temperature 250 Degrees F
Lubrication Openings One Zirc Fitting
Minimum Temperature -40 Degrees F
Housing Material Finish Painted
Flange Thickness 0.5 in
Included Bearing UC205-16A
Bearing Material Grade 52100
Lubricant Material NLGI #2 Equivalent
Housing Type Flange Bracket
System of Measurement Inch
Static Radial Load Capacity 1,764 lbf
Bore Type Cylindrical
Features UCFB Standard Duty, Wide Inner Ring Bearing
Number of Mount Holes 3
Lubrication NLGI Grade 2 Multipurpose Lithium Soap Based Bearing Grease

Description

3 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Flange Bracket, Included Bearing UC205-16A, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 1.125 in, Number of Mount Holes 3, Overall Height 1 27/64 in, Overall Length 4.75 in, Overall Width 2.75 in
