Shop All Pneumatic Regulators
Tru-Flate

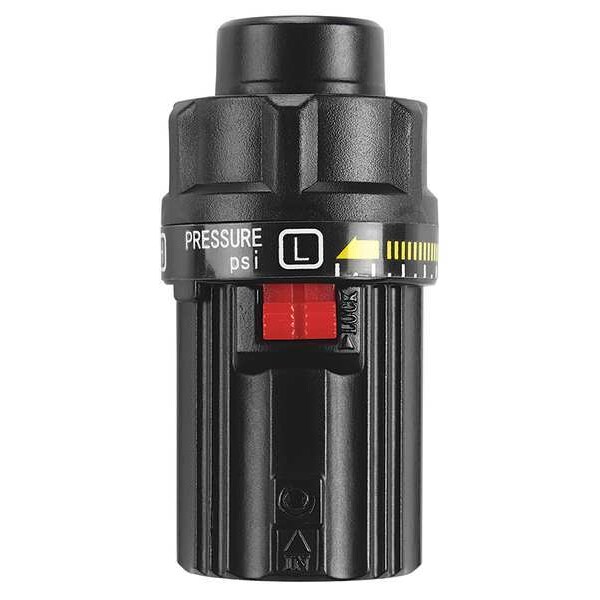

Air Regulator, 25 cfm, 400 psi
Mfr # 41145
Zoro # G8582917
product price: $31.15
/ea
$31.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Size - Regulators 1/4 in
- Max. Inlet Pressure - Regulators 400 psi
- Adjustment Range - Regulators 40 to 140 psi
- Max. Temp. - Regulators 175 Degrees F
- Overall Height - Regulators 2.5 in
Product Information
- Brand Tru-Flate
- MFR # 41145
- Zoro # G8582917
- UPC # 087817012006
- Country of Origin Taiwan, Province of China
- Category Pneumatic Regulators
Dimensions
| Pipe Size - Regulators | 1/4 in |
| Overall Height - Regulators | 2.5 in |
| Pipe Size (Regulators) | 1/4" |
| Overall Length | 1.25 in |
| Overall Height (Regulators) | 2.50" |
| Overall Width - Regulators | 1.25 in |
| Overall Width (Regulators) | 1.25" |
| Overall Height | 2 1/2 in |
| Pressure Gauge Port Size | 1/4 in |
| Overall Width | 1 1/4 in |
| Air Outlet Size | 1/4 in |
| Air Inlet Size | 1/4 in |
| Overall Depth | 1 1/4 in |
Details
Description
In-Line Compressed Air Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 25 cfm, Maximum Operating Pressure 400 psi, Maximum Operating Temperature 175 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 1 1/4 in, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Plastic, Steel, For Fluid Type Air, For Substance Type Air, Maximum Regulated Pressure 140 psi, Minimum Regulated Pressure 40 psi
Restrictions
- WARNING: Reproductive Harm For more information go to www.P65Warnings.ca.gov
