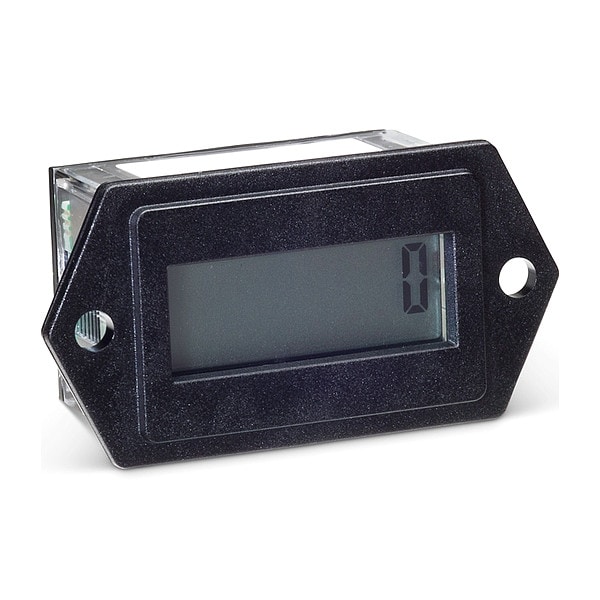

Trumeter P34 LIFT GATE COUNTER 3400-GATE - main

P34 LIFT GATE COUNTER

  • Mfr # 3400-GATE

  • Zoro # G210457394

product price: $49.69
/ea

Key Features

Mounting
2-Hole
Reset Type
Push Button
Display
LCD
Number of Digits
8
NEMA Rating
12, 4, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3400-GATE
Zoro #
G210457394
UPC #
5060144883506
Country of Origin
Malaysia

Dimensions

Character Height
0.28 in on Light Background
Depth
0.78 in
Height
27.9 mm

Details

Item
Lift Gate Counter
Mounting
2-Hole
Reset Type
Push Button
Display
LCD
Number of Digits
8
NEMA Rating
12, 4, 4X
Power Required
Self-Powered (10 yr. Lithium Battery)
Fits
1.44 in x 0.94 in Cutout
IP Rating
IP66
Min. On/Off Pulse
5 sec
Accuracy
100%
Input Signal
4 to 30VDC
Standards
CE Approved, cUL, UL
Connector Type
Spade Terminal
Special Features
If the Activation Switch is Pulsed on and Off Rapidly, the Counter will Ignore that Signal and No Count will Occur, It Incorporates a Delay Circuit Instructing the Counter to Count only if the Activation Switch is Held on for more then 5 Seconds, or 2 Feet of Travel, The 3400 GATE Counter is Designed for Liftgates on Trucks and Commercial Vehicles
Counter Display Type
LCD
Digit Color
Black
Display Features
High Contrast
Counts per Second - Maximum
40
Mounting Style
Panel

Description

Lift Gate Counter, Number of Digits 8, LCD Display, Character Height 0.28 in on Light Background, Input Signal 4 to 30VDC, Output Rating Not Applicable, Mounting 2-Hole, Diameter Not Applicable, Height 27.9 mm, Depth 0.78 in, Power Required Self-Powered (10 yr. Lithium Battery), Min. On/Off Pulse 5 sec, Reset Type Push Button, Connector Type Spade Terminal

Restrictions

Hazardous material
