Shop All Manometers
Tsi Alnor

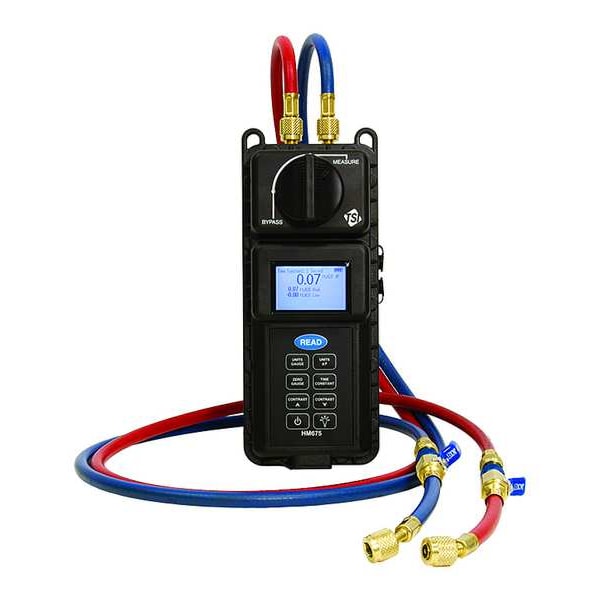

Manometer, Hydronic

product price: $4,010.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pressure Range +/-2068 kPa, +/-300 psi
  • Pressure Resolution 0.001 psi
  • Pressure Accuracy +/-1% of Full Scale
  • Operating Temp. Range 4 Degrees to 45 Degrees C, 40 Degrees to 113 Degrees F
  • Flow Range (GPM) 0 to 9999
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 2 yr
Manufacturer Warranty Length 2 yr
Battery Size AA

Details

Item Digital Hydronic Manometer
Pressure Range +/-2068 kPa, +/-300 psi
Pressure Resolution 0.001 psi
Pressure Accuracy +/-1% of Full Scale
Operating Temp. Range 4 Degrees to 45 Degrees C, 40 Degrees to 113 Degrees F
Flow Range (GPM) 0 to 9999
Max. Pressure (PSI) 2,068 kPa, 300 psi
Fluid Temp. Range (Deg. C) 0 o 100C, 32 to 212F
Display LCD
Battery Life Minimum 12 Hours
Includes (2) 6.7 ft x 1/4 in Hoses with Shut-Off Valves, (2) B&G Readout Probes, (2) P/T Gauge Adapter Probes, Hard Carrying Case, Power Cord
Power Source 4 AA Cell Batteries
Digital Display Screen Type LCD with Backlight
Minimum Gauge Pressure 300 psi
Minimum Operating Temperature 40 Degrees F
Measuring Units bar, ft wc, in wc, in Hg, kPa, mm wc, mm Hg, psi
Number of Records Stored 4,000
Battery Chemistry Alkaline
Maximum Differential Pressure Measured 300 psi
Number of Batteries Required 4
Maximum Gauge Pressure 300 psi
Minimum Differential Pressure Measured -300 psi
Maximum Operating Temperature 113 Degrees F

Description

Digital Hydronic Manometer, Includes (2) 6.7 ft x 1/4 in Hoses with Shut-Off Valves, (2) B&G Readout Probes, (2) P/T Gauge Adapter Probes, Hard Carrying Case, Power Cord, Maximum Gauge Pressure 300 psi, Measuring Units bar, ft wc, in wc, in Hg, kPa, mm wc, mm Hg, psi, Minimum Gauge Pressure 300 psi, Pressure Accuracy +/-1 Percent of Full Scale, Pressure Resolution 0.001 psi, Number of Records Stored 4,000, Maximum Differential Pressure Measured 300 psi
