Shop TSURUMI

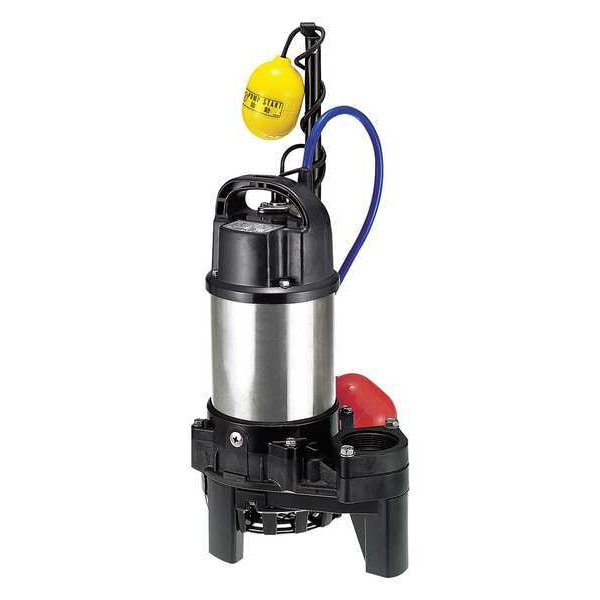

2" 1/2 HP Titanium Submersible Pump with float

  • Mfr # 50TMA2.4S-63 (AUTO, 115V)

  • Zoro # G7157333

product price:  $1,762.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Titanium
Base Material
Resin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50TMA2.4S-63 (AUTO, 115V)
Zoro #
G7157333
UPC #
-
Country of Origin
Japan

Dimensions

Max. Diameter Solids
25/64 in
Height
14-3/4"
Manufacturers Warranty Length
2 yr
Cord Length
32 ft
Cord Length - Pumps
32 ft.
Diameter
9-5/16"
Max. Dia. Solids
25/64"
Min. Sump Pit Dia.
8 in
Discharge Dia.
2 in
Body Dia.
9 5/16 in
Overall Height
14 3/4 in
Body Diameter
9 3/8 in
Width at Widest Point
9 3/8 in
Discharge External Diameter
2 in
Depth Pumped - Minimum
5 in
Sump Pit Diameter - Minimum
8 in
Operating Water Depth - Minimum
24 5/8 in
Solids Diameter - Maximum
2/5 in

Details

HP
1/2
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Titanium
Base Material
Resin
Flow Rate @ 10 Ft. of Head
72 gpm
Max. Head
43 ft
Impeller Material
Glass Fiber Reinforced Plastic
Includes
float switch
Housing Material
Titanium
Voltage - Pumps
120VAC
Agency Compliance
UL 778
Discharge NPT
2"
Motor Type
Air Filled
Voltage
115
Amps - Pumps
5.80
Item
Sewage Ejector Pump
GPM of Water @ 5 Ft. of Head
79
GPM of Water @ 40 Ft. of Head
6
Motor RPM
3397
GPM of Water @ 10 Ft. of Head
72
Max Head - Pumps
43 ft.
Switch Type - Pumps
Float
Shaft Seal
Silicon Carbide
Impeller Material - Pumps
Resin
Pump Type
Electric Submersible
Thermal Protection
Yes
Input Phase AC
1
GPM of Water @ 30 Ft. of Head
27
Item - Sewage Pumps
Submersible Sewage Pump
Max. Head - Pumps
43 ft.
Shaft Seal Material - Pumps
Silicone Carbide
Phase
Single
GPM of Water @ 15 Ft. of Head
62
Amps
5.80 A
Max. Liquid Temp.
104 Degrees F
Switch Type
None
GPM of Water @ 20 Ft. of Head
52
GPM of Water @ 25 Ft. of Head
40
Bearing Type
Double Shielded Pre Lubricated Ball
Pump Body Material
Titanium
Flow Rate @ 40 Ft. of Head
6 gpm
Duty Cycle
Continuous
Switch Electrical Connection
Integral
RPM
3,397 RPM
Flow Rate @ 20 Ft. of Head
52 gpm
Flow Rate @ 15 Ft. of Head
62 gpm
Discharge Standard
NPT
Discharge Gender
Female
Rated Voltage
120V AC
Discharge
2 in FNPT
On Point
4 1/2 in
Off Point
516 in
Standards
UL 778
Flow Rate - Maximum
79 gpm
Feet of Head - Maximum
43 ft
Series
TM
Discharge External Gender
Male
Shaft Seal Material
Silicone
Frequency
60 Hz
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Current
5.80 A
Flow Rate @ 5 ft of Head
79 gpm
Flow Rate @ 10 ft of Head
72 gpm
Horsepower
1/2 hp
Liquid Temperature - Maximum
104 Degrees F
Power Source
Corded Electric
Rotation Speed - Maximum
3,397 RPM
For Media Type
Salt Water
Discharge External Standard
NPT
Motor Housing Material
Titanium
Volute Material
Resin
Power Source - TS Only
Corded Electric

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 120V AC, Phase - Pumps 1, Amps 5.80 A, Switch Actuation Tether Float, On Point 4 1/2 in, Off Point 516 in, Body Material Titanium, Impeller Material Glass Fiber Reinforced Plastic, Shaft Seal Material - Pumps Silicone Carbide, Flow Rate @ 10 Ft. of Head 72 gpm, Flow Rate @ 15 Ft. of Head 62 gpm, Flow Rate @ 20 Ft. of Head 52 gpm, Max. Head 43 ft, Min. Sump Pit Dia. 8 in, Body Dia. 9 5/16 in, Width at Widest Point 9 3/8 in, Overall Height 14 3/4 in
