Shop TSURUMI

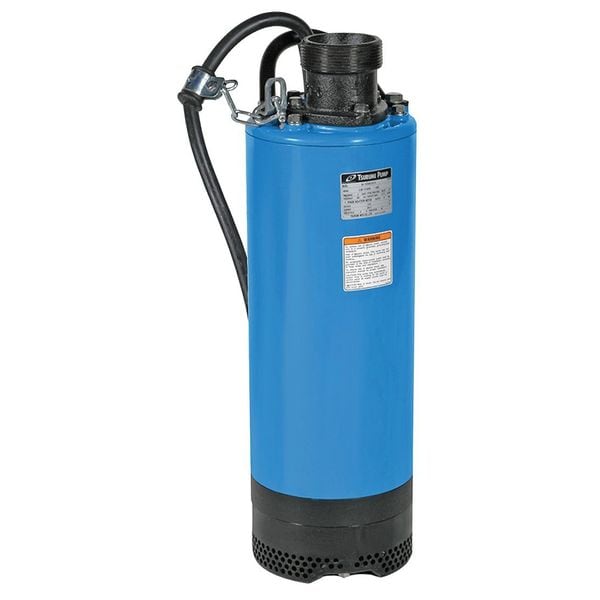

2 HP 3" Plug-In Utility Pump 115V No Switch Included

  • Mfr # LB-1500-60 (115V)

  • Zoro # G6409602

product price:  $2,301.99
/ea
Free Shipping & Returns

Key Features

Cord Length
50 ft
Discharge NPT
3"
Housing Material
Butadiene Rubber + Natural Rubber + Steel
HP
2
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LB-1500-60 (115V)
Zoro #
G6409602
UPC #
-
Country of Origin
Japan

Dimensions

Cord Length
50 ft
Manufacturers Warranty Length
2 yr
Diameter
7-3/8"
Cord Length - Pumps
50 ft.
Max. Diameter Solids
1/4 in
Height
23-5/16"
Cord Size
12/3
Length
23-5/16"
Max. Dia. Solids
1/4"
Width
7-3/8"
Min. Sump Pit Dia.
12 in
Overall Height
23 3/8 in
Width at Widest Point
7 3/8 in
Discharge Dia.
3 in
Minimum Water Depth
12 in
Body Dia.
7 3/8 in
Discharge External Diameter
3 in
Operating Water Depth - Minimum
12 in
Solids Diameter - Maximum
1/4 in
Sump Pit Diameter - Minimum
12 in
Depth Pumped - Minimum
3 in
Body Diameter
7 3/8 in

Details

Discharge NPT
3"
Housing Material
Butadiene Rubber + Natural Rubber + Steel
HP
2
Hz
60
Impeller Material
High Chrome
Max. Head
69 ft
Motor RPM
3480
Motor Type
PSC
Shaft Seal
Silicone Carbide
Voltage
115V
Phase
Single
GPM of Water @ 10 Ft. of Head
108
Pump RPM
3480
Cord Type
3-Conductor STOW, Resists Water and Oil
GPM of Water @ 45 Ft. of Head
60
Max. Liquid Temp.
104 Degrees F
GPM of Water @ 15 Ft. of Head
104
Base Material
Steel
Switch Type - Pumps
No Switch Included
GPM of Water @ 5 Ft. of Head
111
Duty
Continuous
Insulation Class
B
Handle
Top Carrying
Impeller Material - Pumps
High Chrome
Amps - Pumps
26.20
GPM of Water @ 20 Ft. of Head
96
Input Phase AC
1
Pump Body Material
Die Cast Aluminum
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Thermal Protection
Automatic
Item - Dewatering Pumps
Utility/Dewatering Pump
Agency Compliance
Etl/Cetl
GPM of Water @ 35 Ft. of Head
72
Shaft Seal Material - Pumps
Silicone Carbide
Voltage - Pumps
120VAC
GPM of Water @ 25 Ft. of Head
90
Max. Head - Pumps
69 ft.
Amps
26.20
Item
Plug-In Utility Pump
GPM of Water @ 40 Ft. of Head
70
GPM of Water @ 30 Ft. of Head
84
For Use With
Nonflammable Liquids
Switch Type
No Switch Included
Application
Nonflammable Liquids
Phase - Pumps
1
Flow Rate @ 5 Ft. of Head
111 gpm
Discharge
3 in MNPT
Flow Rate @ 15 Ft. of Head
104 gpm
Body Material
Aluminum
Rated Voltage
115V AC
Flow Rate @ 10 Ft. of Head
108 gpm
RPM
3,480 RPM
Discharge Standard
NPT
Switch Actuation
No Switch Included
Discharge Gender
Male
Flow Rate @ 20 Ft. of Head
96 gpm
Duty Cycle
Continuous
Pump Type
Construction Site and Residential Dewatering
Feet of Head - Maximum
69 ft
Series
LB
Flow Rate - Maximum
11 gpm
Discharge External Standard
NPT
Liquid Temperature - Maximum
104 Degrees F
Shaft Seal Material
Silicone
Flow Rate @ 10 ft of Head
108 gpm
Flow Rate @ 5 ft of Head
111 gpm
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Motor Housing Material
Steel
For Media Type
Clear Water
Current
26.20 A
Discharge External Gender
Male
Power Source
Corded Electric
Horsepower
2 hp
Frequency
60 Hz
Rotation Speed - Maximum
3,480 RPM
Standards
Etl/Cetl
Volute Material
Rubber
Power Source - TS Only
Corded Electric

Description

Plug-In Utility Pump, HP 2, Rated Voltage 115V AC, Hz 60, Phase - Pumps 1, Amps 26.20, Switch Actuation No Switch Included, Body Material Aluminum, Impeller Material High Chrome, Shaft Seal Material - Pumps Silicone Carbide, Flow Rate @ 5 Ft. of Head 111 gpm, Flow Rate @ 10 Ft. of Head 108 gpm, Flow Rate @ 15 Ft. of Head 104 gpm, Flow Rate @ 20 Ft. of Head 96 gpm, Max. Head 69 ft, Min. Sump Pit Dia. 12 in, Minimum Water Depth 12 in, Body Dia. 7 3/8 in, Width at Widest Point 7 3/8 in
