Shop TUNGALOY

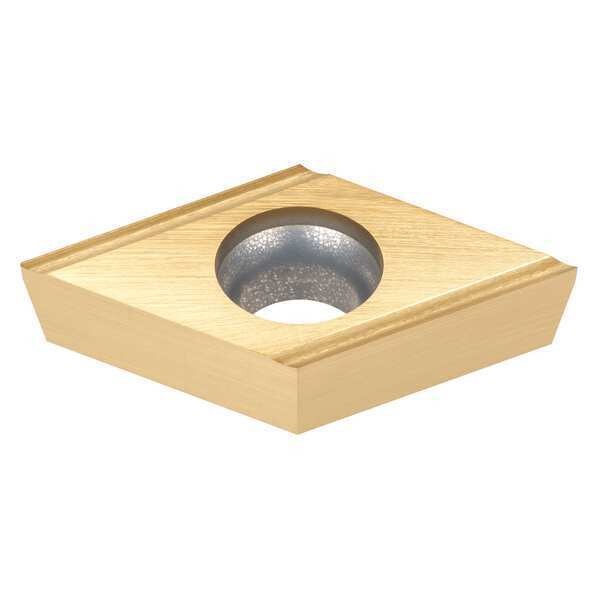

Diamond Turning Insert, Diamond, 3, DCGTR, .2, Carbide

  • Mfr # 6802820

  • Zoro # G0178151

product price:  $30.89
/ea
Sold in multiples of 10 for $308.90

Key Features

Insert Shape
Diamond
Insert Style
DCGTR
Inscribed Circle
3/8 in
Insert Size
32.50
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6802820
Zoro #
G0178151
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.50
Corner Radius
0.0040 in
Mounting Hole Dia.
0.173"
Insert Thickness
0.156"
Nose Radius
0.004"
Thickness
5/32 in
Depth of Cut
0.1969 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCGTR
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
J740
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
Cast Iron (K) Compatibility
Yes
Stainless (M) Compatibility
No
Mounting Style
Screw-On
No. of Edges
2
Non Ferrous (N) Compatibility
Yes
Cutting Direction
Right Hand
Steel (P) Compatibility
Yes
Relief Angle
7 Degrees
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Steel (P)
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
No
Coating
PVD
Cutting Application
Finishing
Clearance Angle
7 Degrees
Primary Material Application
Stainless Steel, Steel
Measurement System
Fractional Inch
Primary Material Application ISO Code
M, P
ANSI Code
DCGT 32.5X FR-J10 J740
Material - Machining
Carbide
Included Angle
55 Degrees
Insert Holding Type
Screw
Finish - Machining
TiN
Number of Cutting Edges
2
Standards
ISO 1832/AM1-1998, JIS B4120-1998
Cutting Edge
Sharp Corner
Manufacturer Grade
J740
Chip-Breaker Code
J10
Shape
Rhombic
Material
Carbide
Style
DCGT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code J10, Inscribed Circle 3/8 in, TiN, ANSI Code DCGT 32.5X FR-J10 J740, Clearance Angle 7 Degrees
