  11. Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

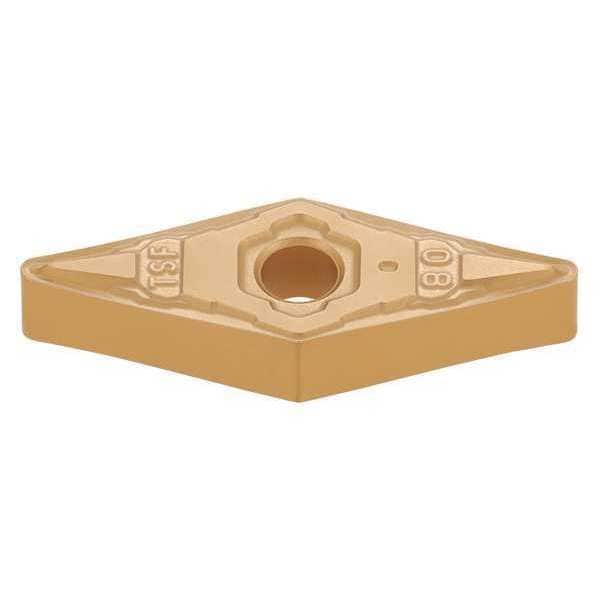

Tungaloy Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide VNMG 332 TSF T9205 - main

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

  • Mfr # VNMG 332 TSF T9205

  • Zoro # G0177585

product price: $14.19
/ea
Sold in multiples of 10 for $141.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG 332 TSF T9205
Zoro #
G0177585
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
2
Mounting Hole Dia.
0.150"
Nose Radius
0.031"
Insert Thickness
0.187"
Depth of Cut
0.0590 in
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
T9105
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
Coating
CVD
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
Relief Angle
0 Degrees
Mounting Style
Clamp-On
Workpiece Compatibility
Cast Iron (K), Steel (P)
Hardened (H) Compatibility
No
No. of Edges
4
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
Yes
Number of Cutting Edges
4
Secondary Material Application
Cast Iron
Material - Machining
Carbide
Cutting Application
Finishing
Chip-Breaker Code
TSF
Secondary Material Application ISO Code
K
Finish - Machining
TiCN+Al2O3+TiN
Measurement System
Fractional Inch
Insert Holding Type
Straight Hole
Primary Material Application
Cast Iron, Steel
Clearance Angle
0 Degrees
Included Angle
35 Degrees
Shape
Rhombic
Primary Material Application ISO Code
K, P
ANSI Code
VNMG 332 TSF T9105
Standards
ISO 26623-1
Manufacturer Grade
T9105
Material
Carbide
Style
VNMG
Application
Semi-Finishing

Description

Diamond Turning Insert, Chip-Breaker Code TSF, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN, ANSI Code VNMG 332 TSF T9105, Clearance Angle 0 Degrees
