  11. Diamond Turning Insert, Diamond, 4, CNMG, 1, Carbide

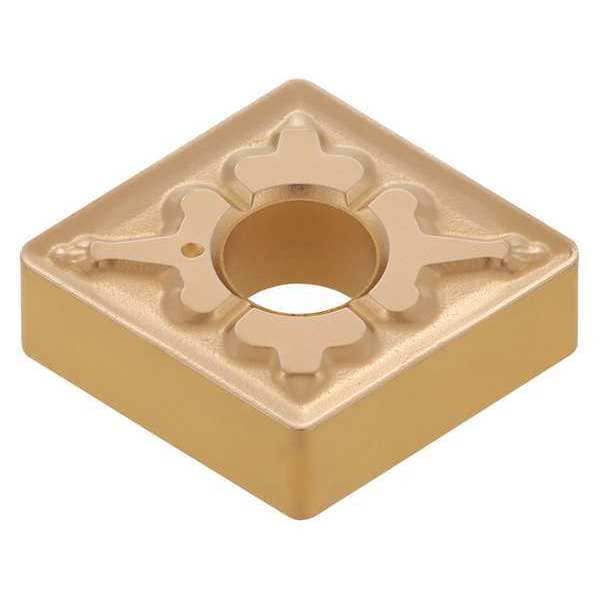

Tungaloy Diamond Turning Insert, Diamond, 4, CNMG, 1, Carbide 6811615 - main

Diamond Turning Insert, Diamond, 4, CNMG, 1, Carbide

  • Mfr # 6811615

  • Zoro # G1925808

product price: $13.89
/ea
Sold in multiples of 10 for $138.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6811615
Zoro #
G1925808
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Mounting Hole Dia.
0.203"
Insert Thickness
0.187"
Nose Radius
0.016"
Thickness
3
Depth of Cut
0.1969 in
Cutting Edge Length
0.5080 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AH120
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
No. of Edges
4
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
Yes
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Steel (P), Super Alloy (S)
Coating
PVD
Cutting Direction
Neutral
Mounting Style
Clamp-On
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Relief Angle
0 Degrees
Secondary Material Application ISO Code
K, M, P, S
Chip-Breaker Code
TM
Shape
Rhombic
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Material - Machining
Carbide
ANSI Code
CNMG 431 TM AH120
Measurement System
Fractional Inch
Standards
ISO 26623-1
Primary Material Application ISO Code
K, M, P, S
Insert Holding Type
Straight Hole
Secondary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Clearance Angle
0 Degrees
Number of Cutting Edges
4
Included Angle
80 Degrees
Finish - Machining
TiAlN
Cutting Application
Medium Cutting
Manufacturer Grade
AH120
Material
Carbide
Style
CNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code TM, Inscribed Circle 1/2 in, TiAlN, ANSI Code CNMG 431 TM AH120, Clearance Angle 0 Degrees
