  11. Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide
This item is Discontinued.

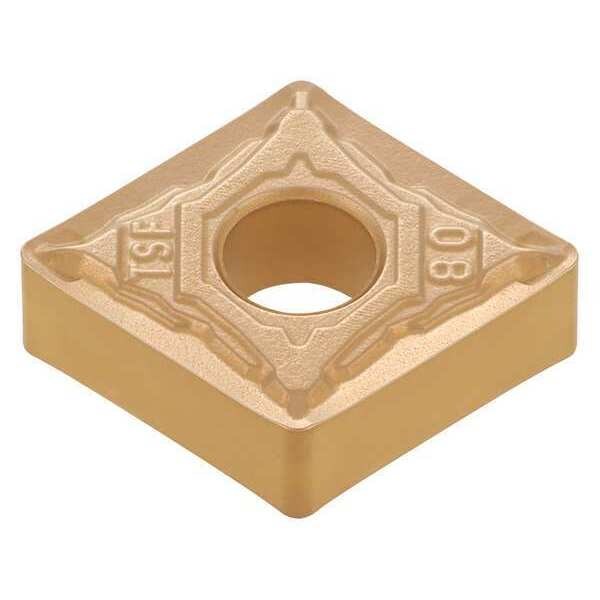

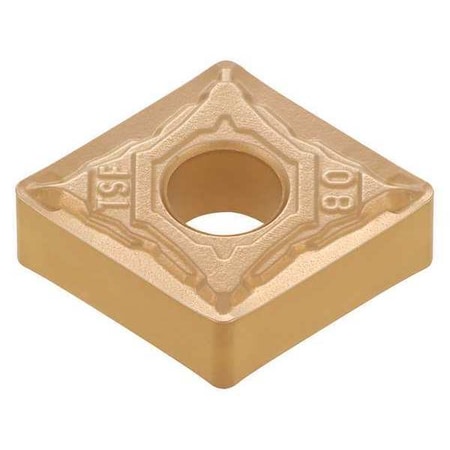

Tungaloy Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG 433 TSF T9105

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide (Discontinued)

  • Mfr # CNMG 433 TSF T9105
  • Zoro # G1925555
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG 433 TSF T9105
Zoro #
G1925555
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.187"
Nose Radius
0.047"
Cutting Edge Length
0.5080 in
Depth of Cut
0.0590 in
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
T9105
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
Super Alloy (S) Compatibility
No
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Mounting Style
Clamp-On
Workpiece Compatibility
Cast Iron (K), Steel (P)
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
No
No. of Edges
4
Coating
CVD
Non Ferrous (N) Compatibility
No
Secondary Material Application ISO Code
K
Clearance Angle
0 Degrees
Number of Cutting Edges
4
Cutting Application
Finishing
Chip-Breaker Code
TSF
Material - Machining
Carbide
Included Angle
80 Degrees
Standards
ISO 26623-1
Insert Holding Type
Straight Hole
Primary Material Application
Cast Iron, Steel
Finish - Machining
TiCN+Al2O3+TiN
Secondary Material Application
Cast Iron
Measurement System
Fractional Inch
Manufacturer Grade
T9105
Primary Material Application ISO Code
K
ANSI Code
CNMG 433 TSF T9105
Shape
Rhombic
Material
Carbide
Style
CNMG
Application
Semi-Finishing

Description

Diamond Turning Insert, Chip-Breaker Code TSF, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN, ANSI Code CNMG 433 TSF T9105, Clearance Angle 0 Degrees
