  11. Cable Tie, 30-1/2 in L, 9 in Max Bundle Dia., Natural, Nylon 6/6, 120 lb Strength, 50 PK

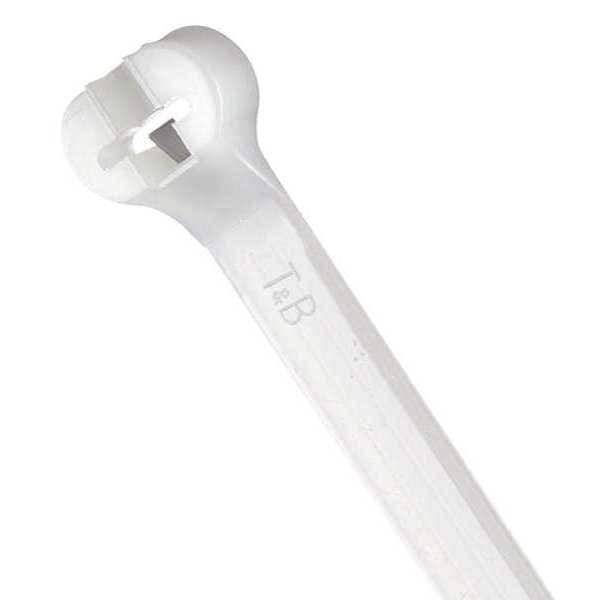

Ty-Rap Cable Tie, 30-1/2 in L, 9 in Max Bundle Dia., Natural, Nylon 6/6, 120 lb Strength, 50 PK TY529M - main

Cable Tie, 30-1/2 in L, 9 in Max Bundle Dia., Natural, Nylon 6/6, 120 lb Strength, 50 PK

  • Mfr # TY529M

  • Zoro # G1312577

product price: $67.49
/pk 50, $1.35/ea

Key Features

Cable Tie Style
Halogen-Free, Plenum Rated
Nominal Length
30-1/2 in
Width
0.30 in
Nominal Max. Bundle Dia.
9 in
Material
Nylon 6/6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TY529M
Zoro #
G1312577
UPC #
-
Country of Origin
United States

Dimensions

Nominal Length
30-1/2 in
Width
0.30 in
Nominal Max. Bundle Dia.
9 in
Thickness
0.06 in
Actual Length
30.4 in
Max. Bundle Dia.
9.01 in

Details

Item
Cable Tie
Cable Tie Style
Halogen-Free, Plenum Rated
Color
Natural
Material
Nylon 6/6
Tensile Strength
120 lb
Outdoor Use
No
Standards
OPC 23190, UL 1565
Metal Detectable
No
Tool Code
B
Locking Style
Stainless Steel Barb
UL Type
21S
Features
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.; Application Tools: ERG120, WT197
Operating Temp. Range
-76 Degrees F to 185 Degrees F
Min. Temp. Rating
-76 Degrees F
Cable Tie Properties
Halogen-Free, Plenum Rated
Number of Straps
1
Max. Temp. Rating
185 Degrees F
Plenum Rated
Yes
Temp. Range
-40 Degrees to 185 Degrees F
Cable Tie Duty
Heavy Duty
Basic Material - Cable Tie
Nylon
Flame Retardant
No

Description

Cable Tie, Standard, Actual Length 30.4 in, Width 0.27 in, Nominal Length 30 1/2 in, Locking Style Stainless Steel Barb, Color Natural, Basic Material - Cable Tie Nylon, Tensile Strength 120 lb, Halogen-Free, Plenum Rated, Heavy Duty, Nominal Max. Bundle Dia. 9 in, Temp. Range -40 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use No, Plenum Rated Yes, UL Type 21S, Thickness 0.06 in, Max. Bundle Dia. 9.01 in, Material Nylon 6/6
