  11. Diamond Turning Insert, Diamond, 2, DCGW, 1, CBN

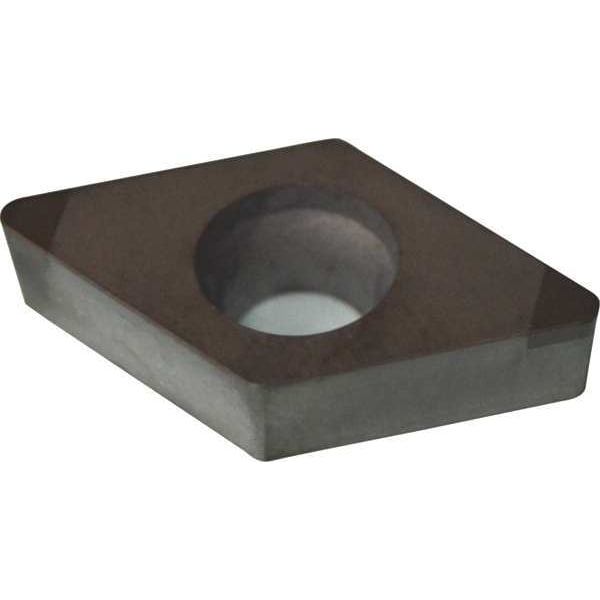

Ultra-Dex Usa Diamond Turning Insert, Diamond, 2, DCGW, 1, CBN 913-000-246 - main

Diamond Turning Insert, Diamond, 2, DCGW, 1, CBN

  • Mfr # 913-000-246

  • Zoro # G9225657

product price: $61.59
/ea

Key Features

Insert Shape
Diamond
Insert Style
DCGW
Inscribed Circle
2
Insert Size
21.51
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-000-246
Zoro #
G9225657
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
21.51
Corner Radius
1
Nose Radius
0.015"
Insert Thickness
0.094"
Mounting Hole Dia.
0.110"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCGW
Inscribed Circle
2
Chip-Breaker
No
Grade
UD2CBN
Insert Material
CBN
Insert Application
Finishing
Rake
Positive
ISO Number
070204
Workpiece Compatibility
Cast Iron (K), Hardened (H)
Relief Angle
7 Degrees
ANSI Number
DCGW 21.51-1 UD2CBN
Hardened (H) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
No. of Edges
2
Mounting Style
Screw Lock
Style
DCGW
Cutting Direction
Neutral
Stainless (M) Compatibility
No
For Use With
SDUCR/L2, SDNCR2, SDXCR/L2, SDQCR2
Steel (P) Compatibility
No
Application
Finishing
Non Ferrous (N) Compatibility
No
Coating
PCBN
Cutting Application
Boring, Turning
Material - Machining
CBN
ANSI Code
DCGW21.51-1
Shape
Rhombic
Included Angle
55 Degrees
Manufacturer Grade
UD2CBN
Number of Cutting Edges
2
Clearance Angle
7 Degrees
Measurement System
Fractional Inch
Primary Material Application
Cast Iron, Hardened Steel
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application ISO Code
H, K
Material
CBN

Description

Diamond Turning Insert, Inscribed Circle 1/4 in, ANSI Code DCGW21.51-1, Clearance Angle 7 Degrees
