  11. Diamond Turning Insert, Diamond, 5/32 in, CDHB, .2, Carbide

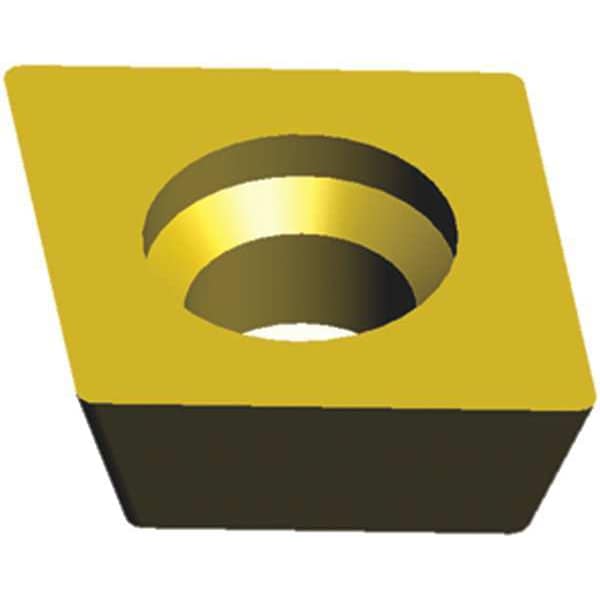

Ultra-Dex Usa Diamond Turning Insert, Diamond, 5/32 in, CDHB, .2, Carbide 913-000-162 - main

Diamond Turning Insert, Diamond, 5/32 in, CDHB, .2, Carbide

  • Mfr # 913-000-162

  • Zoro # G1963285

product price: $15.69
/ea
Sold in multiples of 10 for $156.90

Key Features

Insert Shape
Diamond
Insert Style
CDHB
Inscribed Circle
5/32 in
Insert Size
1.20.60
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-000-162
Zoro #
G1963285
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
1.20.60
Corner Radius
.2
Mounting Hole Dia.
0.081"
Nose Radius
0.004"
Insert Thickness
0.040"
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CDHB
Inscribed Circle
5/32 in
Chip-Breaker
No
Grade
UD21
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
S4T001
Hardened (H) Compatibility
No
Mounting Style
Screw Lock
Coating
TiAlN
Style
CDHB
Stainless (M) Compatibility
Yes
ANSI Number
CDHB 1.20.60 UD21
Application
Finishing
No. of Edges
2
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Stainless (M)
Cutting Direction
Neutral
For Use With
SCLDR/L1.2
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
No
Super Alloy (S) Compatibility
No
ANSI Code
CDHB 1.2060 UD21
Primary Material Application ISO Code
K
Shape
Rhombic
Material - Machining
Carbide
Manufacturer Grade
UD21
Clearance Angle
15 Degrees
Insert Holding Type
70 Degrees to 70 Degrees Countersink Hole
Measurement System
Fractional Inch
Number of Cutting Edges
2
Included Angle
80 Degrees
Secondary Material Application ISO Code
M
Cutting Application
Boring, Turning
Secondary Material Application
Stainless Steel
Primary Material Application
Cast Iron
Finish - Machining
TiAlN
Material
Carbide

Description

Diamond Turning Insert, Inscribed Circle 5/32 in, TiAlN, ANSI Code CDHB 1.2060 UD21, Clearance Angle 15 Degrees
