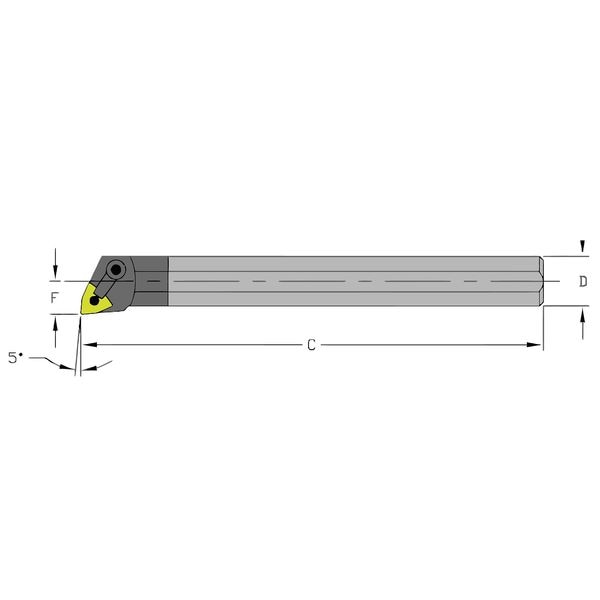

Indexable Boring Bar, E12S MWLNL3, 10 in L, Carbide, Trigon Insert Shape

  • Mfr # 920-000-328
  • Zoro # G9230593
product price:
$
997.99
/ea
Free Shipping & Returns

Key Features

Shank Material
Carbide
Insert Shape
Trigon
Bar Dia.
0.750"
Insert Thickness
0.1875"
ANSI Number
E12S MWLNL3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
920-000-328
Zoro #
G9230593
UPC #
-
Country of Origin
United States
Item
Indexable Boring Bar
Shank Material
Carbide
Insert Shape
Trigon
ANSI Code
E12S MWLNL3
ANSI Number
E12S MWLNL3
Inscribed Circle
3/8"
Mounting Style
Clamp and Lock Pin
Cutting Edge Type
-5 Degrees
For Use With
WNMG 332
Type
Turning
Left/Right Hand
Left Hand
Lead Angle
-5 Degrees
Style
Coolant-Thru
Min. Bore
0.920"
Rake
Negative
Cutting Direction
Left Hand
Insert Holding Type
Clamp and Lock Pin
Number of Coolant Holes
1
Number of Inserts
1
Insert Inscribed Circle
3/8 in
Insert Clearance Angle
0 Degrees
Compatible Hardware
CL-7 Clamp, NL-33L Lock Pin, XNS-36 Clamp Screw
Side Cutting Edge Angle
-5 Degrees
Insert Style
WNMG
Coolant Fed
Coolant Through
Cutting Application
Boring
Center to Cutting Tip
1/2 in
Compatible Product Type
WNMG 332
Container Type
Coolant-Thru
Sensor Body Style
Coolant-Thru

Dimensions

Overall Length
10 in
Bar Dia.
0.750"
Insert Thickness
0.1875"
Insert Size
332
Shank Dia.
3/4 in
Min. Bore Dia.
0.9200 in
Wire Rope Length
10 in
Length
10 in

Description

Indexable Boring Bar, Insert Shape Trigon, Overall Length 10 in, E12S MWLNL3, 1/2 in, CL-7 Clamp, NL-33L Lock Pin, XNS-36 Clamp Screw, Coolant Through, Boring, Left Hand
