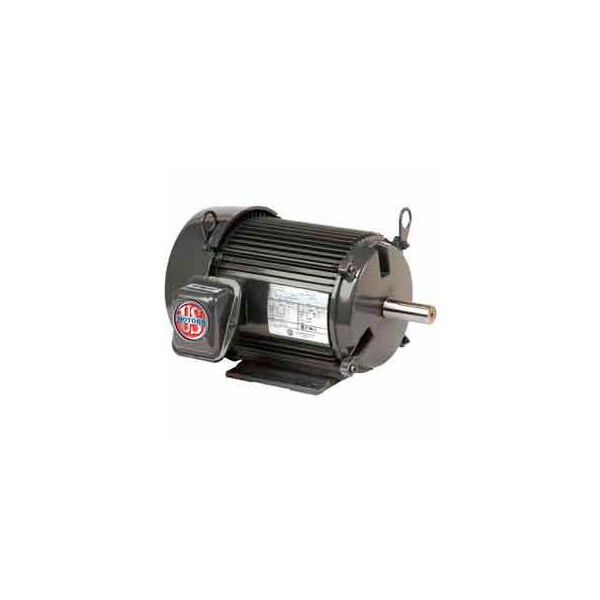

2 hp HP, 145T Frame, 208-230/460V; 190/380V Voltage, 1750 / 1435 RPM Nameplate RPM
Mfr # U2P2D
Zoro # G704931119
product price:Â $840.99
/ea
Free Shipping & Returns
Key Features
HP
2 hp
Nameplate RPM
1750 / 1435 RPM
Voltage
208-230/460V; 190/380V
Motor Mounting Type
Horz-Footed
Full Load Amps
5.9-5.7/2.8 A
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
U2P2D
Zoro #
G704931119
UPC #
786382087869
Country of Origin
Mexico
Dimensions
Overall Length
12.8 in
Details
HP
2 hp
Nameplate RPM
1750 / 1435 RPM
Voltage
208-230/460V; 190/380V
Motor Mounting Type
Horz-Footed
Full Load Amps
5.9-5.7/2.8 A
Frame
145T
Motor Bearings
6203-2Z-J/C3,6205-2Z-J/C3
Motor Service Factor
1.25
Motor Enclosure Design
TEFC
Phase
Three
Motor Application
General Purpose
Hz
50/60 Hz
Ins. Class
F
Motor Frame Material
Rolled Steel
Nominal Efficiency
86.5%
Standards
EE, NEMA Premium
NEMA Design
B
Kw
1.492 kW
Duty Cycle
Continuous
Description
Us motors unimount tefc, 2 hp, 3-phase, 1750 rpm motor general purpose three phase totally enclosed fan cooled (tefc) unimount premium efficient
