Dayton

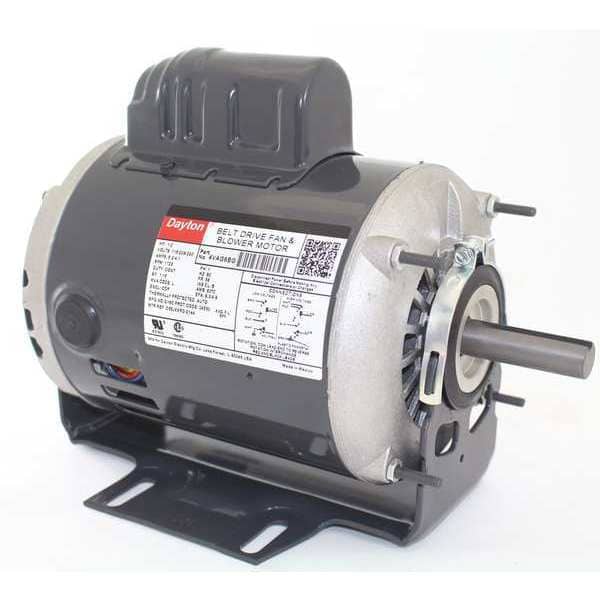

Capacitor-Start Belt Drive Motor, 1/2 HP, 56 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

product price: $273.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start
  • Motor Enclosure Design Open Dripproof
  • HP 1/2
  • No. of Speeds 1
  • RPM Range 1,701-1,800
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Length Less Shaft 8 1/2 in
Body Dia. 5 5/8 in
Resilient Ring Dia. 2 1/4 in
Overall Length 10 3/8 in
Shaft Length 1 7/8 in

Details

Item Belt Drive Motor
Motor Design Capacitor-Start
Motor Enclosure Design Open Dripproof
HP 1/2
No. of Speeds 1
RPM Range 1,701-1,800
Nameplate RPM 1,725
Voltage 115/208-230V AC
Frame 56
Motor Mounting Type Cradle Base
Motor Thermal Protection Auto
Motor Service Factor 1.15
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase Single
Motor Application HVAC/R
Motor Sub Application Belt Drive Fan/Blower
Motor Frame Material Rolled Steel
Max. Ambient Temp. 140 Degrees F
Mounting Stud Pattern 3-5/8 in x 3-5/8 in
Full Load Amps 8.2/4.1 A
Nominal Efficiency 63.5 %
Motor Bearings Ball
Motor Mounting Position All Angle
Hz 60 Hz
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Ring to Ring Center 8 in
Standards CSA Certified (258501), UL Recognized (E37403)
Ins. Class B
Frame Material Rolled steel
Duty Continuous
Duty Cycle Continuous

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 8.2/4.1 A Full Load Amps, 56 Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 140 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in
