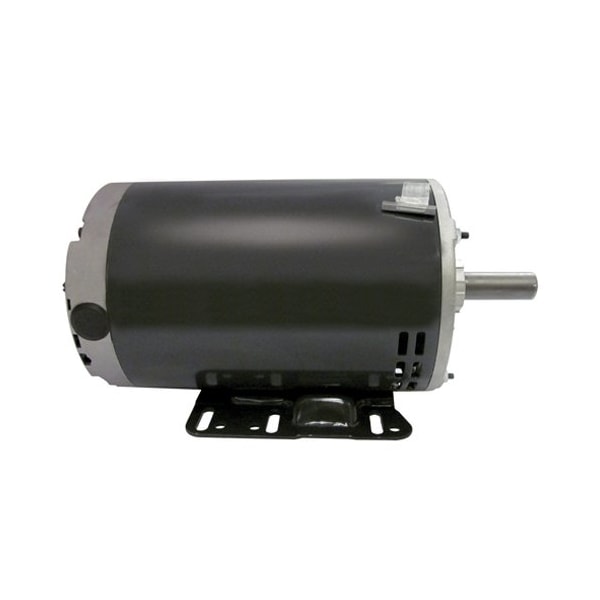

3-Phase Direct Drive Blower Motor, 3 HP, 56 Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
Mfr # 7915VP
Zoro # G0921031
product price:Â
$
792.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3
No. of Speeds
1
RPM Range
1,701-1,800
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7915VP
- Zoro #
- G0921031
- UPC #
- 786382110093
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 7/8 in
- Overall Length
- 13 11/32 in
- Body Dia.
- 6 5/16 in
- Shaft Length
- 2 5/16 in
- Body Diameter
- 6.3 in
- Shaft Diameter
- 7/8 in
- Frame Size
- 56HZ
- Wire Rope Length
- 13 11/32 in
- Length
- 13 11/32 in
Description
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, 9.0-9.2/4.6 A Full Load Amps, 56HZ Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Shaft Length 2 5/16 in, Shaft Dia. 7/8 in
