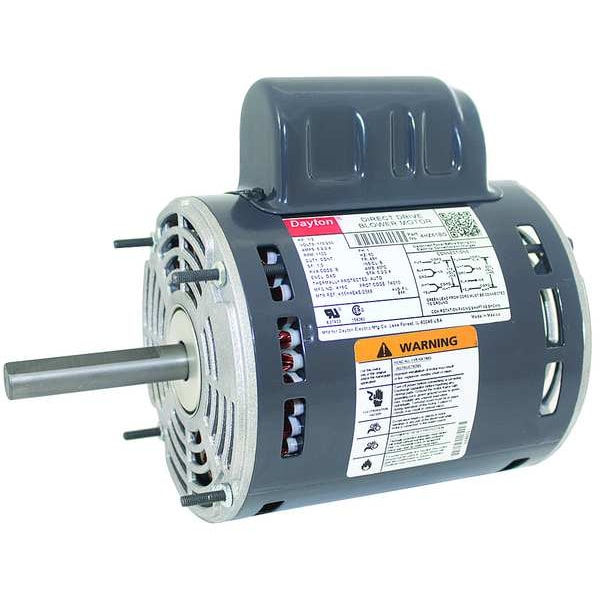

Motor, PSC, 1/2 HP, 1100, 115/230V, 48Y, OAO

DAYTON| Zoro #: G2039712| Mfr #: 4HZ61BG

$297.83 /ea

This item ships free. Details.Standard ground shipping.
Details:
Bolt Circle Dia.: 5-1/8"
Item: Direct Drive Blower Motor
Shaft Length: 3"
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2039712 Mfr #: 4HZ61BG
Bolt Circle Dia.: 5-1/8"Item: Direct Drive Blower Motor
Shaft Length: 3"Motor Application: HVAC/R
Capacitor Required: IncludedDuty: Continuous Air-over
Motor Thermal Protection: AutoMotor Shaft Rotation: CCWSE
RPM Range: 1001-1100Overall Length: 9-9/16"
Standards: UL Recognition (E37403), CSA Certification (258501)Motor Mounting Type: Stud
Length Less Shaft: 6-9/16"Body Dia.: 5-5/8"
Includes: CapacitorMotor Design: Permanent Split Capacitor
Phase: 1Resilient Ring Dia.: 2-1/4"
Motor Enclosure Design: Open Air-OverFrame: 48Y
Voltage Compatibility: 115, 120, 230, 240, 115/230, 120/240Motor Mounting Position: All Angle
Hz: 60Motor Bearings: Ball
HP: 1/2Shaft Dia.: 5/8"
No. of Speeds: 1Ins. Class: B
Application: Mfr. No. 4HZ29, 4HZ53, 4HZ55Motor Shaft Design: Flat
Max. Ambient Temp.: 40 Degrees CReplacement For: Mfr. No. 4HZ29, 4HZ53, 4HZ55
Motor Service Factor: 1.00Motor Sub Application: Direct Drive Fan/Blower
Voltage: 115/230Nameplate RPM: 1100
Nominal Efficiency: 67.5%Country of Origin (subject to change): Mexico

Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/2 HP, 1100 Nameplate RPM, Voltage 115/230, 5.6/2.8 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Number of Speeds 1, Mounting Stud, Bearings Ball, Thermal Protection Auto, Rotation CCWSE, Shaft Dia. 5/8 In., Shaft Length 3 In.
