Shop U.S. MOTORS

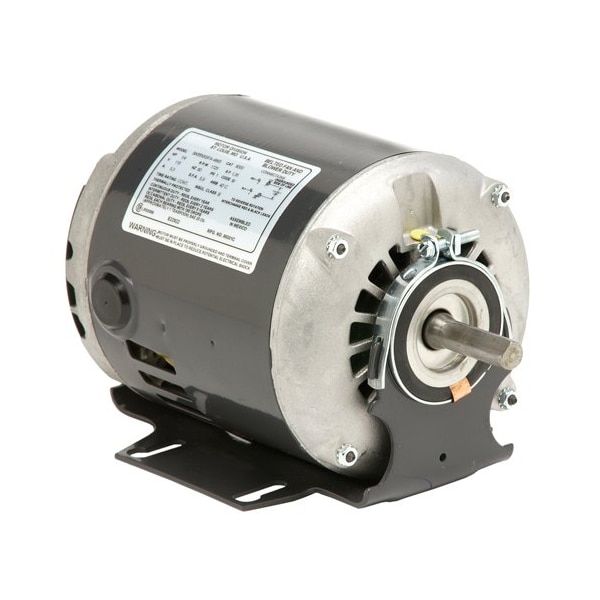

Belt Drive Motor, 56Z, 1/3 hp; 1/8 hp

  • Mfr # 5793C

  • Zoro # G1931567

product price:
$
196.99
/ea
Free Shipping & Returns

Key Features

HP
1/3, 1/8
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
56Z
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5793C
Zoro #
G1931567
UPC #
786382005832
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
8 15/16 in
Body Dia.
5 1/2 in
Overall Length
10 7/16 in
Resilient Ring Dia.
2 1/2 in
Frame Size
56Z
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
1/2 in
Body Diameter
5.5 in
Wire Rope Length
10 7/16 in
Length
10 7/16 in

Details

HP
1/3, 1/8
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
56Z
Motor Shaft Rotation
CWLE
RPM Range
1,701-1,800
Motor Shaft Design
Flat
Full Load Amps
6.4/4.0 A
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Bearings
Sleeve
Motor Application
HVAC/R
Max. Ambient Temp.
104 Degrees F
Motor Mounting Position
Horizontal
Hz
60 Hz
Motor Design
Split-Phase
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Air Compressors; Pumps; Conveyors
Item
Belt Drive Motor
No. of Speeds
2
Motor Thermal Protection
Auto
Motor Enclosure Design
Open Dripproof
Ins. Class
B
Phase
Single
Weight
21 lb
Nominal Efficiency
54.26 %
Usable @ 208V
No
Motor Frame Material
Steel
Extended Thru-Bolts
Yes
Standards
CE Certification
Usable @ 200V
No
Ring to Ring Center
4 3/16 in
Includes
1 Bag, 1 Bushing, 1 Shaft
Mounting Stud Pattern
No
Duty Cycle
Continuous
Includes Shaft Bushing
Yes
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Shaft Design
Flat
Full Load Current @ 60 Hz
6.4/4.0 A
Manufacturers Warranty
1 yr
Number of Speeds
2
Application
Fan/Blower
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Belt Drive
Frequency
60 Hz
Bearing Type
Sleeve
Frame Material
Steel
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1
Duty
Continuous
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/8 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 6.4/4.0 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Stud
