Shop All 3.3 Inch Diameter Motors
Dayton

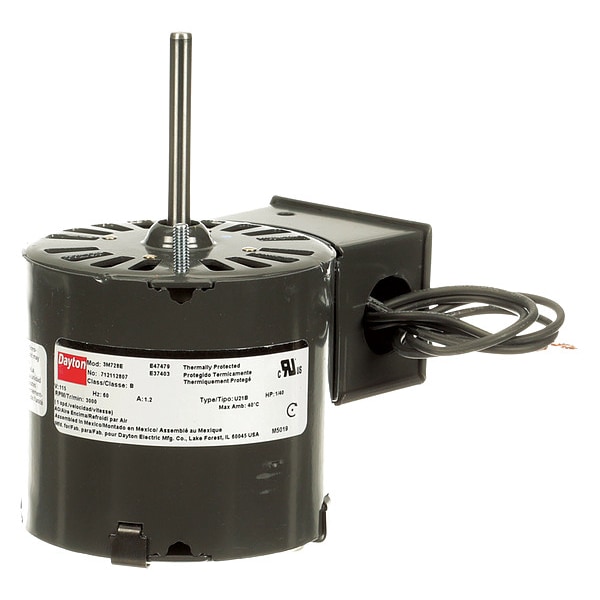

HVAC Motor, 1/40 HP, 3000 rpm, 115V, 3.3

product price: $55.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115V AC
  • Nameplate RPM 3,000
  • Motor Enclosure Design Open Air-Over
  • Number of Speeds 1
  • HP 1/40
See all product information

Product Information

Dimensions

Cord Length 12 in
Shaft Dia. 1/4 in
Body Dia. 3 5/16 in
Shaft Length 2 1/4 in
Length Less Shaft 3 in

Details

Voltage 115V AC
Nameplate RPM 3,000
Motor Enclosure Design Open Air-Over
Number of Speeds 1
HP 1/40
RPM Range 1,801-3,000
Motor Shaft Rotation CWSE
Footnotes 51
Motor Shaft Design Flat
Number of Shafts 1
No. of Speeds 1
Motor Service Factor 1
Stud/Base Mtg. Pattern 2-7/8 in
Phase Single
Item HVAC Motor
Motor Application HVAC/R
Motor Bearings Sleeve
Duty Continuous
Mounting Stud Location 2/Shaft End
Motor Design Shaded Pole
Application OEM and Replacement Use In A Wide Variety of Fan and Blower
Frame 3.3
Ins. Class B
Motor Thermal Protection Auto
Max. Ambient Temp. 40 Degrees C
Mounting Pattern 2-7/8
Includes 5 cu. in. Junction Box
Hz 60 Hz
Full Load Amps 1.2 A
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Mounting Type Stud
Standards CSA Certified, UL Recognized (E37403)
Motor Sub Application Direct Drive Fan/Blower
Capacitor Required No
Motor Mounting Position All Angle
Usable @ 208V No
Usable @ 200V No
Mounting Stud Pattern 2 7/8 in
Duty Cycle Continuous
Mounting Stud
Type OEM Replacement

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.2 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
