Shop U.S. MOTORS

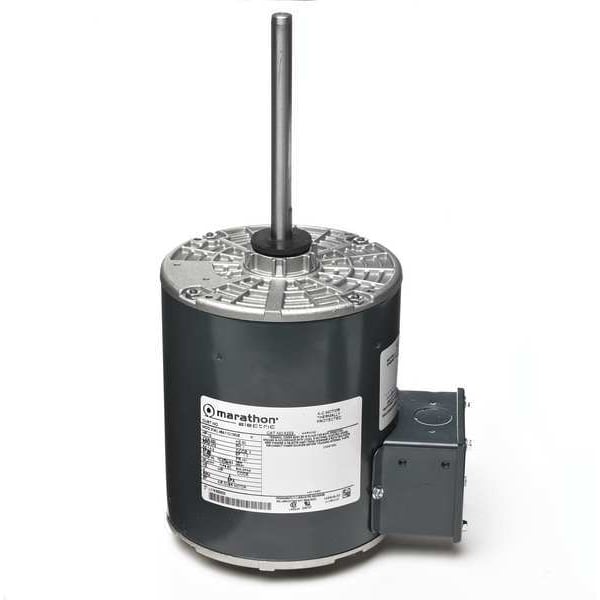

Condenser Fan Motor, 1/2 hp

  • Mfr # 7475

  • Zoro # G8044417

product price:  $285.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7475
Zoro #
G8044417
UPC #
786382006730
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
5 in
Overall Length
11 7/8 in
Body Dia.
5 5/8 in
Length Less Shaft
6 15/16 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.6 in
Wire Rope Length
11 7/8 in

Details

Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Ring/Stud
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Nameplate RPM
1,075
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
208V AC, 230V AC, 460V AC
OEM Replacement Brand
Amana
Standards
CSA (156060), UL (E22922)
Full Load Amps
2 .8/1 .4 A
Capacitor Required
Capacitor Included
Motor Shaft Design
Flat
Motor Service Factor
1
Duty
Continuous
Ins. Class
B
Motor Bearings
Ball
Hz
60
Number of Shafts
1
Duty Cycle
Continuous
Usable @ 200V
No
Usable @ 208V
Yes
Weight
20 lb
Product Type
Condenser Fan Motor
Number of Speeds
1
Ambient Temperature - Maximum
60 Degrees C
Drive Type
Direct Drive
Sub Application
Condenser Fan
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2 .8/1 .4 A Full Load Amps, 48Y Frame, 60 Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Hub, Stud, Motor Frame Material Steel
