Shop U.S. MOTORS

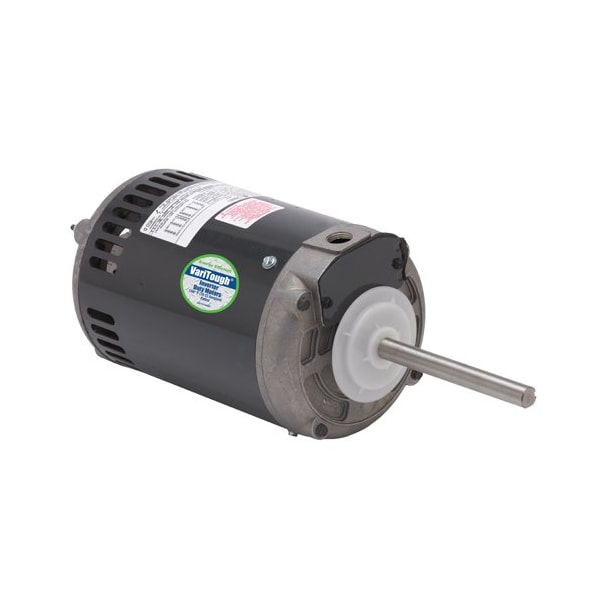

Condenser Fan Motor, 2 hp

  • Mfr # 8987V

  • Zoro # G0919622

product price:
$
605.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8987V
Zoro #
G0919622
UPC #
786382078133
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6 5/16 in
Body Diameter
6.3 in
Shaft Diameter
5/8 in
Frame Size
56YZ

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Band
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Voltage Compatibility
208V AC, 230V AC, 460V AC
Motor Service Factor
1
Full Load Amps
7.8-7.8/3.9 A
Ins. Class
F
Nominal Efficiency
85.5 %
Application
Commercial Condenser Fans
Hz
60 Hz
Insulation Class
F
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Full Load Current @ 60 Hz
7.8-7.8/3.9 A
Ambient Temperature - Maximum
70 Degrees C
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Drive Type
Direct Drive
Capacitor Required
Capacitor Not Required
Frame Material
Steel
Frequency
60 Hz

Description

Motor,2HP,1140RPM,208-230/460V,60HZ, Motor Design 3-Phase, Phase Three, 2 HP, No. of Speeds 1, Voltage 208-230/460V AC, Motor Shaft Rotation CCW, 56 Frame, Motor Enclosure Design Open Dripproof, Band Motor Mounting Type, Shaft Dia. 5/8 in, Motor Thermal Protection T-Stat, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 1,140, HVAC/R, 60 Hz, Full Load Amps 7.8-7.8/3.9 A, Ins. Class F, Motor Service Factor 1
