Shop U.S. MOTORS

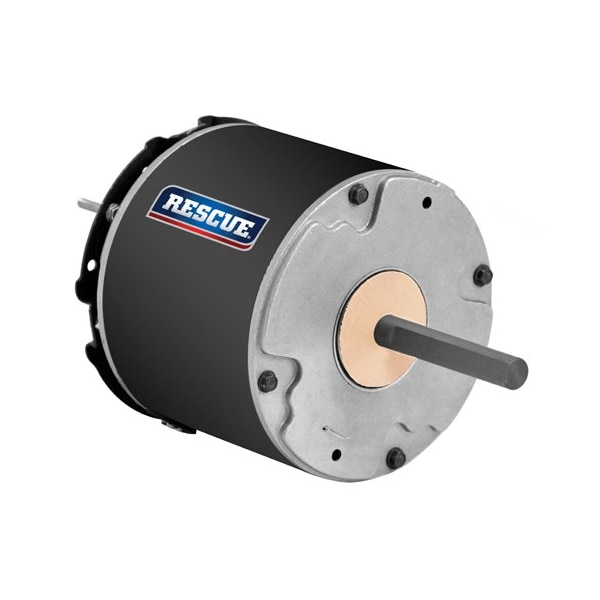

Condenser Fan Motor, 1/4 hp

  • Mfr # 5441H

  • Zoro # G0916332

product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5441H
Zoro #
G0916332
UPC #
786382100131
Country of Origin
Mexico

Dimensions

Shaft Length
3 in
Length Less Shaft
5 1/2 in
Stud Size
8-32
Overall Length
8 1/2 in
Bolt Circle Dia.
4 3/8 in
Body Dia.
5 in
Lead Length
42 in
Bolt Circle Diameter
4 3/8 in
Frame Size
42
Body Diameter
5 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
8 1/2 in
Length
8 1/2 in

Details

Item
Condenser Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
42
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,075
Motor Application
HVAC/R
Voltage Compatibility
208V AC, 230V AC
Duty
Totally Enclosed Air Over
Motor Service Factor
1
Hz
60 Hz
Ins. Class
B
Full Load Amps
1.5 A
Application
High Ambient Condenser Fans
Standards
CSA Certified, UL Listed
Motor Bearings
Ball
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
70 Degrees C
Number of Speeds
1
Insulation Class
B
Drive Type
Direct Drive
Product Type
Condenser Fan Motor
Capacitor Required
Capacitor Not Included
Frequency
60 Hz
Full Load Current @ 60 Hz
1.5 A
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Sub Application
Condenser Fan

Description

Motor,1/4,1/6HP,1075,208-230V,60HZ, Motor Design Permanent Split Capacitor, Phase Single, 1/4 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CCW, 42 Frame, Motor Enclosure Design Open Dripproof, Stud Motor Mounting Type, Shaft Length 3 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 1,075, HVAC/R, 60 Hz, Full Load Amps 1.5 A, Ins. Class B, Motor Service Factor 1, Motor Bearings Ball, Overall Length 8 1/2 in
