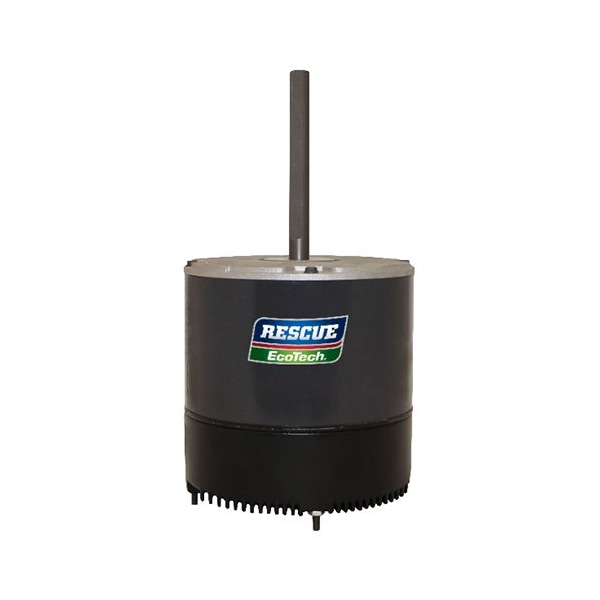

Condenser Fan Motor, 1/3 hp
Mfr # 5561EO
Zoro # G0215427
product price: $343.99
/ea
Free Shipping & Returns
Key Features
Motor Design
ECM
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5561EO
Zoro #
G0215427
UPC #
786382112530
Country of Origin
Mexico
Dimensions
Length Less Shaft
5 5/8 in
Body Dia.
5 5/8 in
Shaft Length
4 1/2 in
Overall Length
10 1/8 in
Bolt Circle Dia.
5 1/8 in
Lead Length
54 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
2 yr
Mounting Stud Length
1/2 in
Description
Condenser Fan Motor, Single Phase, Motor Design ECM, 1/3 hp HP, Nameplate RPM 1,075/825 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.5 A Full Load Amps, 48Y Frame, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
