Shop DAYTON

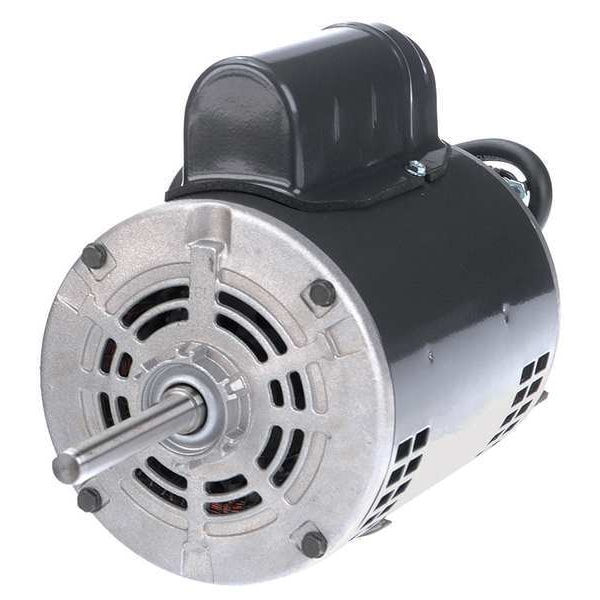

Motor, PSC, 1/2 HP, 1725,115/230V, 48Z, ODP

  • Mfr # 5BE54
  • Zoro # G0905021
product price:
$
284.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Ins. Class
B
Mounting Stud Pattern
3 5/8 in
Nameplate RPM
1,725
Motor Bearings
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5BE54
Zoro #
G0905021
UPC #
190735342183
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5 11/16 in
Length Less Shaft
8 5/16 in
Bolt Circle Dia.
5 1/8 in
Shaft Length
3 in
Stud Size
#10-32
Body Diameter
5.7 in
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Frame Size
48Z
Overall Length
10 7/32 in
Mounting Stud Thread Size
#10-32
Wire Rope Length
10 7/32 in
Length
10 7/32 in

Details

Phase
Single
Ins. Class
B
Mounting Stud Pattern
3 5/8 in
Nameplate RPM
1,725
Motor Bearings
Ball
Application
Fan/Blower
Motor Sub Application
Direct Drive
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Mounting Type
Ring/Stud
Capacitor Required
Capacitor Included
Hz
60 Hz
Voltage
115V AC, 230V AC
Item
Fan and Blower Motor
RPM Range
1,701-1,800
Frame
48Z
No. of Speeds
1
Duty
Continuous
Mounting Stud Location
4/Opposite Shaft End
HP
1/2
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Flat
Full Load Amps
6.0/3.0 A
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
Motor Mounting Position
All Angle
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Recognized
Motor Application
HVAC/R
Mounting Holes
(4) #10-32
Duty Cycle
Continuous
Includes
Capacitor
Usable @ 200V
Not Usable at 200V
Number of Shafts
1
Stud Quantity
4
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F3
Number of Speeds
1
Mounting
Stud
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Sub Application
Ventilator
Mounting Position
All Angle
Drive Type
Direct Drive
Motor Enclosure Type
Open Drip Proof
Shaft Design
Flat
Bearing Type
Ball
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
6.0/3.0 A
Product Type
Fan and Blower Motor
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 6.0/3.0 A Full Load Amps, 48Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
