Shop U.S. MOTORS

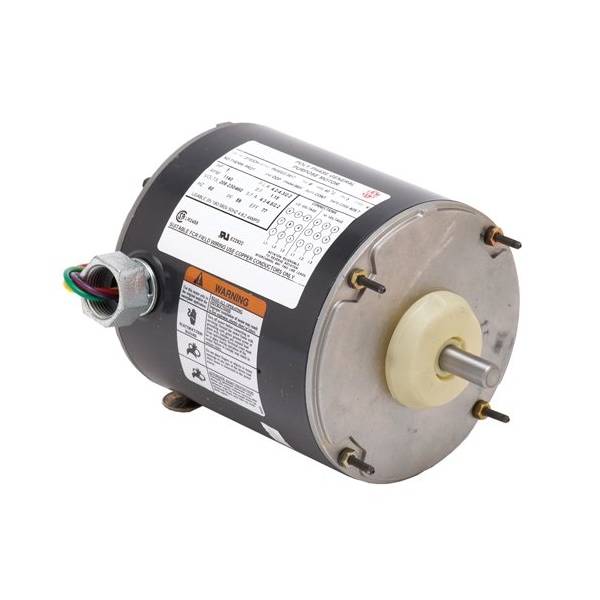

Farm Duty Motor, Capacitor-Start/Run, 1/2 HP, 115/230V AC, 1,725 Nameplate RPM, 48YZ Frame

  • Mfr # FD12AM2P4ZRS

  • Zoro # G0407773

product price:
$
498.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1/2 hp
Voltage
115/230V AC
Frame
48YZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FD12AM2P4ZRS
Zoro #
G0407773
UPC #
786382074432
Country of Origin
Mexico
Item
Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1/2 hp
Voltage
115/230V AC
Frame
48YZ
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Type
Belly Band
Motor Shaft Design
Keyed
Motor Sub Application
Hatchery/Setter
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
77.3 %
Ins. Class
A
Capacitor Required
Capacitor Included
Motor Bearings
Ball
Item - Farm Duty Motors
Agricultural Fan Motor
Full Load Amps
5.0/2.5 A
Hz
60/50 Hz
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Full Load Amps @ 50Hz
5.0/2.5 A
Duty Cycle
Continuous
Voltage @ 50Hz
115/230V AC
Service Factor @ 50Hz
1
Weight
19.3 lb
HP @ 50Hz
1/2 hp
RPM @ 50Hz
1725/1425
Usable @ 208V
Not Usable at 208V

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.0/2.5 A, 48YZ Frame, Usable @ 208V Not Usable at 208V, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Motor Frame Material Steel
