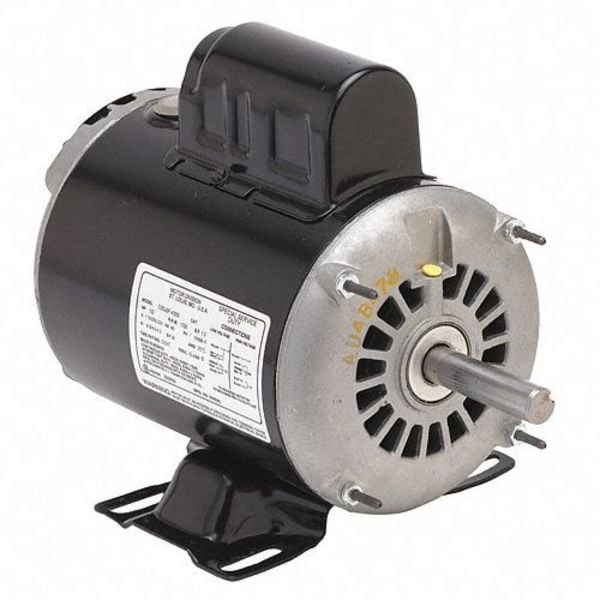

General Purpose Motor, 1/3hp, 1725RPM, 48Z
Mfr # D13B2N4Z
Zoro # G1930386
product price: $122.99
/ea
Free Shipping & Returns
Key Features
HP
1/3 hp
Nameplate RPM
1,725 RPM
Voltage
115V AC
Frame
48Z
Shaft Dia.
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
D13B2N4Z
Zoro #
G1930386
UPC #
786382057558
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Shaft Length
2 1/4 in
Length Less Shaft
7 1/2 in
Overall Length
9 3/4 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.0 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
