Shop DAYTON

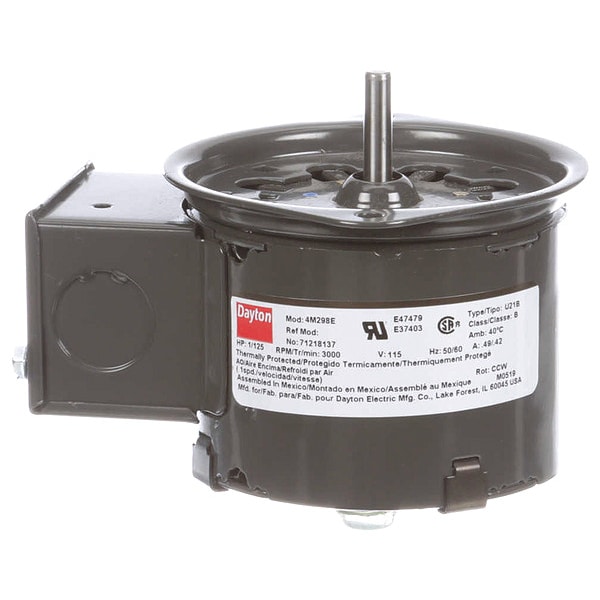

HVAC Motor, 1/125 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71218137M

  • Zoro # G1461223

product price:  $67.49
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/125
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71218137M
Zoro #
G1461223
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
2 15/16 in
Shaft Dia.
1/4 in
Shaft Length
3/4 in
Body Dia.
3 5/16 in
Cord Length
6 in
Frame Size
3.3
Shaft Diameter
1/4 in
Overall Length
3 1/2 in
Body Diameter
3.3 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/125
RPM Range
1,801-3,000
Motor Shaft Rotation
CCWSE
Full Load Amps
0.49 A
No. of Speeds
1
Stud/Base Mtg. Pattern
3-7/8 in x 3-7/8 in
Includes
5 cu. in. Junction Box
Standards
CSA Certified, UL Recognized
Mounting Pattern
3-7/8 x 3-7/8
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ins. Class
B
Number of Shafts
1
Motor Shaft Design
Round
Motor Service Factor
1
Hz
60 Hz
Footnotes
6, 51
Motor Sub Application
Direct Drive Fan/Blower
Motor Design
Shaded Pole
Max. Ambient Temp.
40 Degrees C
Phase
Single
Duty
Continuous
Motor Thermal Protection
Auto
Motor Mounting Type
Face
Item
HVAC Motor
Motor Application
HVAC/R
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Frame
3.3
Motor Bearings
Sleeve
Capacitor Required
Capacitor Not Required
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Mounting Stud Pattern
3 7/8 in x 3 7/8 in
Duty Cycle
Continuous
Mounting
Face
Type
OEM Replacement
Drive Type
Direct Drive
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Shaft Design
Round
Frame Material
Steel
Frequency
60 Hz
Bearing Type
Sleeve
Full Load Current @ 60 Hz
0.49 A
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Wattage
6 W

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/125 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.49 A Full Load Amps, 3.3 Frame, Output Watts 6 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Flange, Motor Frame Material Steel
