Shop FASCO

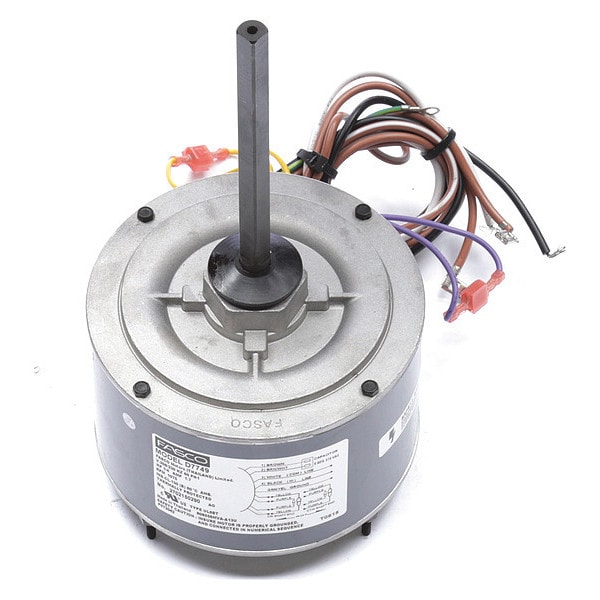

Condenser Fan Motor, 1/4 hp

  • Mfr # D7749
  • Zoro # G6422827
product price:
$
112.99
/ea
Free Shipping & Returns

Key Features

Motor Shaft Design
Double-Flat
Stud Size
#8-32
Motor Application
HVAC/R
Motor Bearings
Ball
Lead Length
27 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D7749
Zoro #
G6422827
UPC #
818508020181
Country of Origin
Thailand

Dimensions

Stud Size
#8-32
Lead Length
27 in
Shaft Length
6 1/2 in
Overall Length
10 1/4 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 1/4 in
Shaft Dia.
1/2 in
Length Less Shaft
3 3/4 in
Body Dia.
5 5/8 in
Bolt Circle Diameter
5 1/4 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48
Mounting Stud Thread Size
#8-32
Wire Rope Length
10 1/4 in
Length
10 1/4 in

Details

Motor Shaft Design
Double-Flat
Motor Application
HVAC/R
Motor Bearings
Ball
Item
Condenser Fan Motor
Nameplate RPM
1,075
Application
Condenser Fan
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Voltage
208V AC to 230V AC
Standards
CSA Certified, UL Recognized
Mounting Stud Pattern
3 11/16 in x 3 11/16 in
Features
Belly Band, Extended Studs Lead End, Thermally Protected
Ins. Class
B
HP
1/4
Duty
Continuous
Full Load Amps
1.7 A
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
No. of Speeds
1
Frame
48
Max. Ambient Temp.
60 Degrees C
Motor Design
Permanent Split Capacitor
Hz
60 Hz
Phase
Single
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Nominal Efficiency
59 %
Capacitor Required
Capacitor Included
Motor Thermal Protection
Auto
Motor Sub Application
Condenser Fan
Motor Enclosure Design
Open Dripproof
RPM Range
1,001-1,100
Stud Quantity
4
Usable @ 208V
Not Usable at 208V
Removable Base
Yes
Motor Frame Material
Steel
Weight
10 lb
Output Watts
190 W
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Manufacturers Warranty
1 yr
Sub Application
Condenser Fan
Insulation Class
B
Mounting Position
All Angle
Frequency
60 Hz
Drive Type
Direct Drive
Bearing Type
Ball
Includes
Removable Base
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
60 Degrees C
Frame Material
Steel
Full Load Current @ 60 Hz
1.7 A
Product Type
Condenser Fan Motor
Shaft Design
Double Flat
Number of Speeds
1
Wattage
190 W
Motor Enclosure Type
Open Drip Proof

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.7 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
