Shop U.S. MOTORS

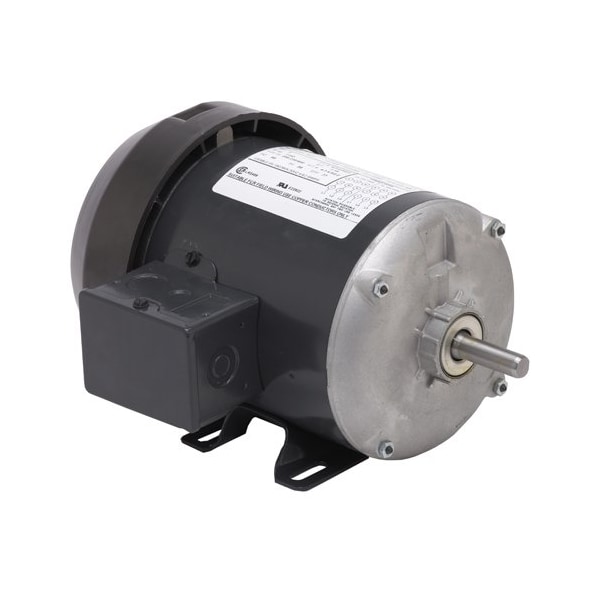

GeneralPurposeMotor, 1/6hp, 1725RPM, 48

  • Mfr # T16B2N49

  • Zoro # G1929272

product price:
$
137.99
/ea
Free Shipping & Returns

Key Features

HP
1/6 hp
Nameplate RPM
1,725 RPM
Voltage
115V AC
Frame
48
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T16B2N49
Zoro #
G1929272
UPC #
786382059323
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Length Less Shaft
9 1/8 in
Overall Length
10 5/8 in
Manufacturers Warranty Length
1 yr
Wire Rope Length
10 5/8 in
Frame Size
48
Shaft Diameter
1/2 in
Length
10 5/8 in

Details

HP
1/6 hp
Nameplate RPM
1,725 RPM
Voltage
115V AC
Frame
48
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Phase
Single
Motor Bearings
Ball
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Commercial Fans and Blowers, Conveyors, Pumps and General Industrial Equipment Requiring Moderate Starting Torque, Tools
Motor Design
Split-Phase
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Full Load Amps
3.4 A
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Item
General Purpose Motor
Max. Ambient Temp.
40 Degrees C
Motor Application
General Purpose
Motor Shaft Design
Flat
No. of Speeds
1
Hz
60 Hz
Ins. Class
B
Motor Service Factor
1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Weight
18.08 lb
Standards
CSA Certified, UL Recognized
Duty Cycle
Continuous
Part Winding Start Capable
No
Nominal Efficiency
56.55 %
Removable Base
Permanently Lubricated
Mounting Position
Horizontal
Bearing Lubrication Type
Permanently Lubricated
Efficiency Rating
Standard Efficiency (IE1)
Manufacturers Warranty
1 yr
Shaft Design
Flat
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
3.4 A
Number of Speeds
1
Frame Material
Steel
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Bearing Type
Ball

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/6 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.4 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
