Shop U.S. MOTORS

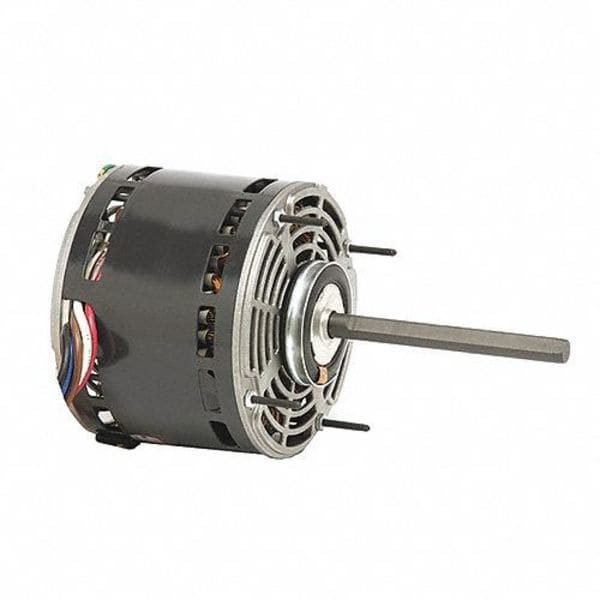

OEM Replacement Motor, 1/3 hp

  • Mfr # 5835

  • Zoro # G8043473

product price:
$
176.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1,075
Voltage
115V AC
Frame
48YZ
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5835
Zoro #
G8043473
UPC #
786382055196
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
6 in
Stud Size
8-32
Body Dia.
5.7 in
Bolt Circle Dia.
5 1/8 in
Length Less Shaft
5 5/16 in
Overall Length
11 7/8 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.7 in
Shaft Diameter
1/2 in
Frame Size
48YZ
Wire Rope Length
11 7/8 in
Length
11 7/8 in

Details

HP
1/3
Nameplate RPM
1,075
Voltage
115V AC
Frame
48YZ
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Motor Shaft Design
Flat
Ins. Class
B
Voltage Compatibility
115V AC, 120V AC
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Type
Ring/Stud
Number of Shafts
1
No. of Speeds
4
Phase
Single
Standards
CSA (156060), UL (E22922)
Duty
Continuous
Motor Enclosure Design
Open Air-Over
Item
Fan and Blower Motor
OEM Replacement Brand
Amana
Capacitor Required
Capacitor Not Included
Motor Application
HVAC/R
Motor Bearings
Ball
Hz
60
Motor Thermal Protection
Auto
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Full Load Amps
4.6 A
Motor Design
Permanent Split Capacitor
Weight
16 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Compatible Brand
Amana
Full Load Current @ 60 Hz
4.6 A
Shaft Design
Flat
Product Type
Fan and Blower Motor
Number of Speeds
4
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Sub Application
Fan/Blower
Application
Fan/Blower

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, Full Load Amps 4.6 A, 48YZ Frame, OEM Replacement Brand Amana, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
