Shop U.S. MOTORS

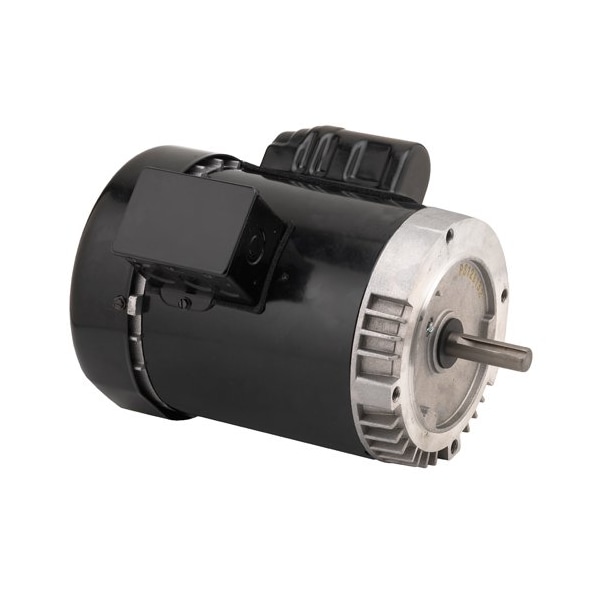

GeneralPurposeMotor, 2hp, 1725RPM, 56C

  • Mfr # T2C2JCR

  • Zoro # G2197247

product price:  $679.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T2C2JCR
Zoro #
G2197247
UPC #
786382071301
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 15/16 in
Shaft Length
1 15/16 in
Overall Length
13 7/8 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Wire Rope Length
13 7/8 in
Frame Size
56C

Details

Motor Design
Capacitor-Start
Item
General Purpose Motor
Phase
Single
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56C
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
18.9/10.3-9.4 A
Nameplate RPM
1,725 RPM
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
82 %
Motor Bearings
Ball
Ins. Class
F
Motor Service Factor
1.15
No. of Speeds
1
Motor Application
General Purpose
Motor Sub Application
Air Compressors, Blowers, Conveyors, Pumps
Hz
60 Hz
Standards
CE, CSA Certified, UL Listed
Weight
32 lb
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Bearing Protection
Double Shields
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Number of Speeds
1
Full Load Current @ 60 Hz
18.9/10.3-9.4 A
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
F
Bearing Type
Ball
Product Type
General Purpose Motor
Efficiency Rating
High Efficiency (IE2)

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 18.9/10.3-9.4 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
