Shop U.S. MOTORS

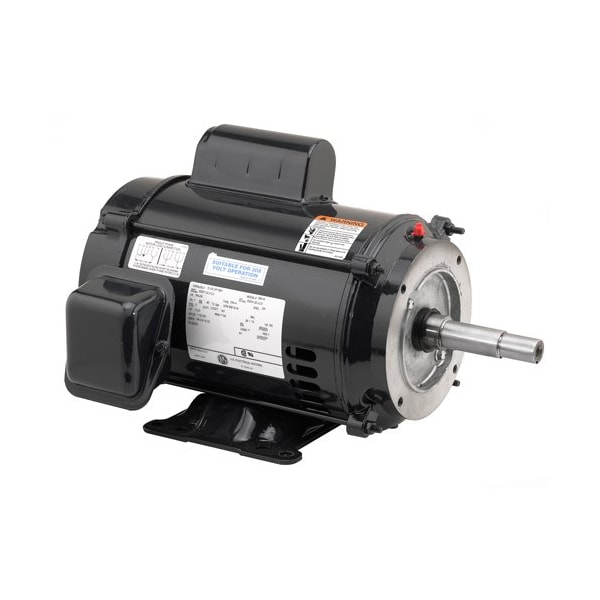

Pool and Spa Pump Motor, 5 hp, 60 Hz

  • Mfr # DJ5C2K18M

  • Zoro # G2183938

product price:
$
874.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
5
Frame
184JM
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DJ5C2K18M
Zoro #
G2183938
UPC #
786382024123
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 in
Overall Length
19 9/16 in
Shaft Length
4 1/4 in
Length Less Shaft
15 5/16 in
Bolt Circle Dia.
5 7/8 in
Height
10 1/2 in
Body Dia.
7.8 in
Body Diameter
7.7 in
Frame Size
184JM
Shaft Diameter
1 in
Wire Rope Length
19 9/16 in

Details

Motor Design
Capacitor-Start/Run
Item
Pool Pump Motor
Phase
Single
HP
5
Frame
184JM
Voltage
230V AC
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Rigid Base
Full Load Amps
22 A
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Motor Application
Pump
Ins. Class
F
Hz
60 Hz
Motor Service Factor
1.15
Motor Frame Material
Steel
Nameplate RPM
1,740
Standards
CSA, UR
Motor Bearings
Ball
NEMA Design
L
Conduit Box Position
F1
Duty Cycle
Continuous
Weight
86 lb
Max. SF Amps
24.4 A
Usable @ 200V
Not Usable at 200V
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Frequency
60 Hz
Manufacturers Warranty
387 mo
Full Load Current @ 60 Hz
22.0 A
Application
Pump
NEMA Design Class
L
Number of Speeds
1
Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Product Type
Pump Motor
Frame Material
Steel
Service Factor Current
24.4 A
Shaft Thread Type
JM

Description

Pool Pump Motor, Body Dia. 7.8 in, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 22.0, Height 10 1/2 in, HP 5, Ins. Class F, Length Less Shaft 15 5/16 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 24.4, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
