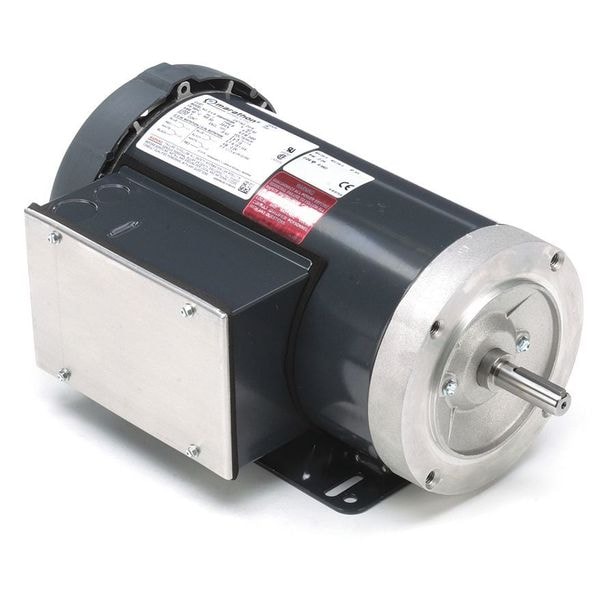

Capacitor-Start/Run General Purpose Motor, 3 HP, 56HC Frame, 208-230V AC Voltage

  • Mfr # 056B34F5328

  • Zoro # G2006039

product price:  $792.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
3 hp
RPM Range
3,001-3,600
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056B34F5328
Zoro #
G2006039
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
14 13/16 in
Length Less Shaft
12 3/4 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Shaft Length
2 1/16 in
Shaft Diameter
5/8 in
Frame Size
56HC

Details

Item
General Purpose Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
3 hp
RPM Range
3,001-3,600
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Frame
56HC
Voltage
208-230V AC
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
13.1-11.8 A
RPM Group
3001-3600
Nominal Efficiency
84 %
Motor Frame Material
Steel
Ins. Class
B
Includes
Capacitor
Motor Service Factor
1.15
Motor Bearings
Ball
Duty
Continuous
Standards
CE, CSA, UL Recognized
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Inverter Rated
Not Inverter Rated
Motor Mounting Position
Horizontal
Hz
60 Hz
Motor Shaft Design
Keyed
Nameplate RPM
3,450 RPM
Motor Application
General Purpose
Frame Material
Steel
Usable @ 208V
Usable at 208V
Weight
51 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Application
General Purpose
Mounting Position
Horizontal
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Insulation Class
B
Full Load Current @ 60 Hz
13.1-11.8 A
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 13.1-11.8 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
