Shop U.S. MOTORS

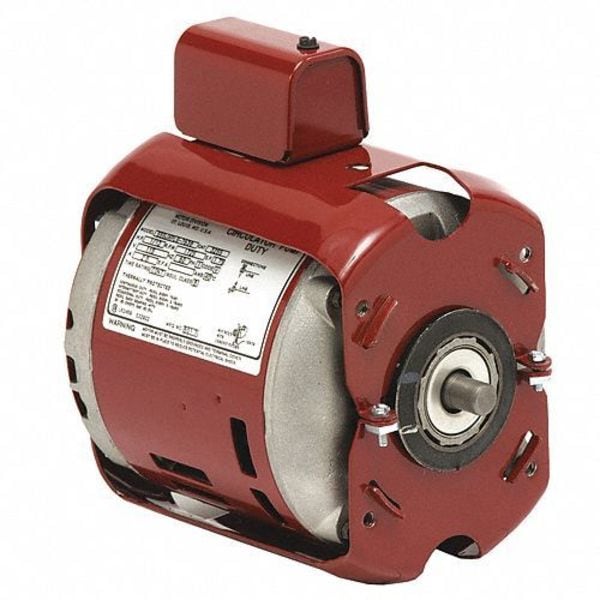

Motor, 0.083 HP, 48XY Frame, Single Phase

  • Mfr # 3255

  • Zoro # G1942426

product price:  $201.99
/ea
Free Shipping & Returns

Key Features

HP
1/12
Nameplate RPM
1,725
Voltage
115V AC
Frame
48XY
Shaft Dia.
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3255
Zoro #
G1942426
UPC #
786382002992
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Body Dia.
5.6 in
Overall Length
6 7/8 in
Length Less Shaft
6 5/16 in
Bolt Circle Dia.
4 1/2 in
Height
7 11/16 in
Resilient Ring Dia.
5 13/16 in
Resilient Ring Diameter
5 13/16 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Shaft Length
1/2 in
Frame Size
48

Details

HP
1/12
Nameplate RPM
1,725
Voltage
115V AC
Frame
48XY
Motor Shaft Rotation
CW
RPM Range
1,701-1,800
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Motor Shaft Design
Flat
Motor Application
HVAC/R
Motor Service Factor
1.8
Full Load Amps
2.5 A
No. of Speeds
1
Item
Pump Motor
Motor Mounting Type
Ring
Motor Thermal Protection
Auto
Motor Sub Application
Designed to meet manufacturer's requirements for use on hot water circulating pumps., Hot Water Circulating PumpOpen Dripproof (ODP) NEMA Frame 48YZ
Max. Ambient Temp.
122 Degrees F
Motor Bearings
Sleeve
Hz
60
Motor Mounting Position
Horizontal
Motor Design
Split-Phase
Ins. Class
B
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Weight
14 lb
Usable @ 208V
Not Usable at 208V
Nominal Efficiency
37.8 %
Max. SF Amps
3.1 A
Number of Wires
1
Motor Frame Material
Rolled Steel
Inverter Rated
Not Inverter Rated
Mounting Position
Horizontal
Efficiency Rating
Standard Efficiency (IE1)
Manufacturers Warranty
260 mo
Product Type
Pump Motor
Number of Speeds
1
Shaft Design
Flat
Standards
CE, CSA, Energy's Efficiency Regulation 10 CFR Section 431 Subpart B, ISO 9001:2015, UL
Ambient Temperature - Maximum
50 Degrees C
Full Load Current @ 60 Hz
2.5
Application
Pump
Bearing Type
Sleeve
Insulation Class
B
Frame Material
Steel
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.8
Shaft Material
Stainless Steel
Service Factor Current
3.1 A
Motor Enclosure Type
Open Drip Proof

Description

Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 4 1/2 in, Conduit Box Location Exterior, Frame 48XY, Hz 60, Full Load Amps 2.5, Height 7 11/16 in, HP 1/12, Ins. Class B, Inverter Rated Not Inverter Rated, Length Less Shaft 6 5/16 in, Max. Ambient Temp. 122 Degrees F, Max. SF Amps 3.1 A, Motor Application HVAC/R, Motor Bearings Sleeve, Motor Design Split-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Rolled Steel
