  11. Motor, 1 HP, 143JM Frame, Three Phase

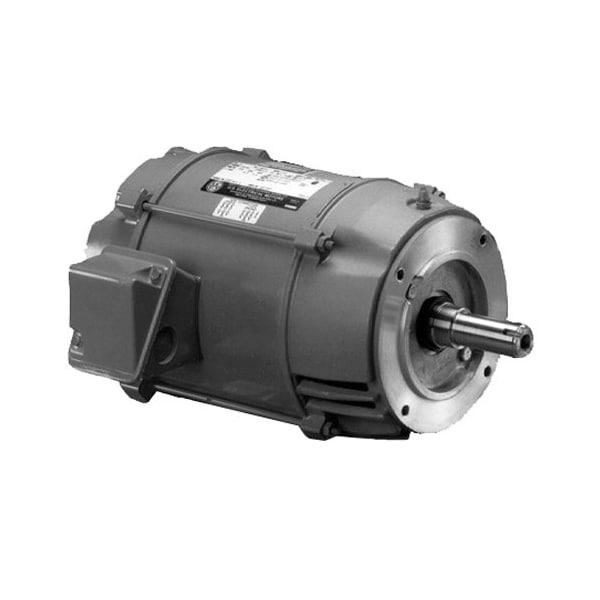

U.S. Motors Motor, 1 HP, 143JM Frame, Three Phase DJ1P2DU - main

Motor, 1 HP, 143JM Frame, Three Phase

  • Mfr # DJ1P2DU

  • Zoro # G1941997

product price: $497.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1760
Voltage
208-230/460V AC
Frame
143JM
Shaft Dia.
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DJ1P2DU
Zoro #
G1941997
UPC #
786382116453
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 in
Length Less Shaft
11 3/8 in
Body Dia.
8.6 in
Overall Length
15 5/8 in
Height
8 5/8 in

Details

HP
1
Nameplate RPM
1760
Voltage
208-230/460V AC
Frame
143JM
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Motor Sub Application
Close-Coupled Pump
No. of Speeds
1
Hz
60/50
Motor Mounting Position
Horizontal
Motor Application
Pump
Phase
Three
Motor Thermal Protection
None
Item
Pump Motor
Motor Mounting Type
Face/Base
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Full Load Amps
3.2-3.1/1.60
Motor Enclosure Design
Open Dripproof
Motor Design
3-Phase
Max. Ambient Temp.
104 Degrees F
Ins. Class
F
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Service Factor
1.2
RPM @ 50Hz
1,445
Service Factor @ 50Hz
1.2
Standards
CE, CSA
Max. SF Amps
3.5-3.4/1.7 A
Voltage @ 50Hz
190/380
Nominal Efficiency
85.5 %
Duty Cycle
Continuous
Usable @ 200V
No
Conduit Box Location
Exterior
Full Load Amps @ 50Hz
1.8/3.5 A
HP @ 50Hz
1
CC Number
CC030A
Usable @ 208V
Yes
Weight
30 lb
Inverter Rated
No
Motor Frame Material
Steel

Description

Pump Motor, Body Dia. 8.6 in, CC Number CC030A, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 143JM, Hz 60/50, Full Load Amps 3.2-3.1/1.60, Full Load Amps @ 50Hz 1.8/3.5 A, Height 8 5/8 in, HP 1, HP @ 50Hz 1, Ins. Class F, Inverter Rated No, Length Less Shaft 11 3/8 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 3.5-3.4/1.7 A, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group Premium Efficient, Motor Enclosure Design Open Dripproof
