Shop CENTURY

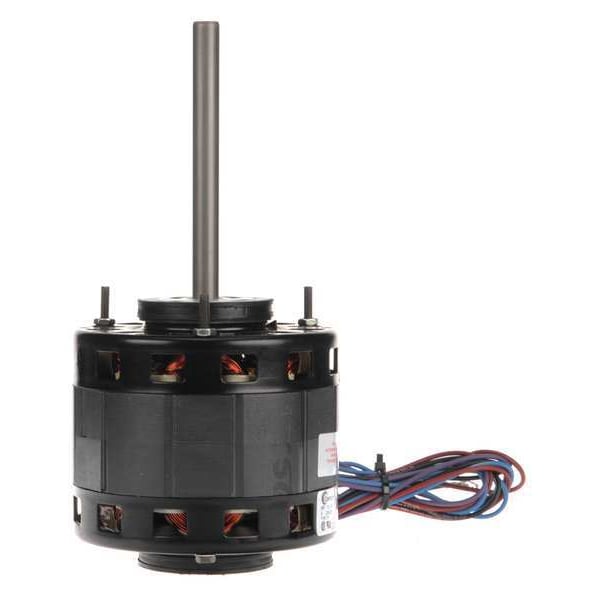

Mtr, Sh Pole, 1/5 HP, 1050,208-230V, 42Y, OAO

  • Mfr # B6415

  • Zoro # G2762837

product price:
$
165.99
/ea
Free Shipping & Returns

Key Features

Mounting Stud Pattern
4 7/16 in, 3 Stud
Duty
Continuous
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B6415
Zoro #
G2762837
UPC #
-
Country of Origin
Mexico
Item
Fan and Blower Motor
Mounting Stud Pattern
4 7/16 in, 3 Stud
Duty
Continuous
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Motor Enclosure Design
Open Air-Over
Nameplate RPM
1,050
No. of Speeds
3
Standards
CSA Certified, UL Recognized
Full Load Amps
3.2,2.1,1.5 A
Motor Shaft Rotation
CCWLE
Includes
Resilient Mounting Ring
Motor Mounting Type
Ring
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Design
Shaded Pole
Motor Mounting Position
Horizontal
Ring to Ring Center
4 9/16 in
Application
Fan/Blower
Capacitor Required
Capacitor Not Required
HP
1/5, 1/8, 1/10
Voltage
208-230V AC
Motor Application
HVAC/R
Motor Shaft Design
Flat
Phase
Single
Ins. Class
A
Motor Bearings
Sleeve
RPM Range
1,001-1,100
Frame
42Y
Weight
11 lb
Number of Shafts
1
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Mounting Holes
4
Usable @ 208V
Usable at 208V
Mounting
Ring
Number of Speeds
3
Insulation Class
A
Bearing Type
Sleeve
Shaft Design
Flat
Motor Enclosure Type
Open Air Over
Frame Material
Steel
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
1.5 A, 2.1 A, 3.2 A
Product Type
Fan and Blower Motor
Mounting Position
Horizontal
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Wattage
70 W

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp, 1/5 hp, 1/8 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 3, Voltage 208-230V AC, 1.5 A, 2.1 A, 3.2 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
