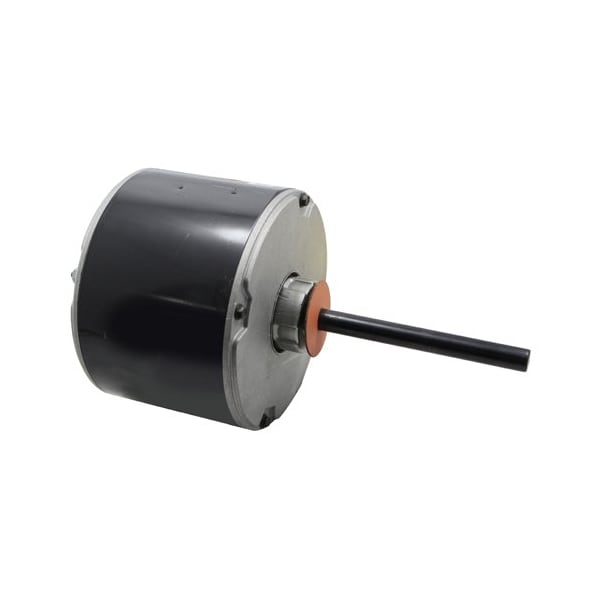

Motor, 1/6HP, 825RPM, 208-230V, 60HZ
Mfr # LX7927
Zoro # G0917671
product price:Â
$
193.99
/ea
Free Shipping & Returns
Key Features
Frame
48Y
HP
1/6 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LX7927
- Zoro #
- G0917671
- UPC #
- 786382100667
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 1/2 in
- Body Dia.
- 5.6"
- Manufacturers Warranty Length
- 1 yr
- Overall Length
- 9 1/2 in
- Wire Rope Length
- 9 1/2 in
- Body Diameter
- 5.6 in
- Shaft Diameter
- 1/2 in
- Frame Size
- 48Y
- Length
- 9 1/2 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.1 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Shaft Dia. 1/2 in
