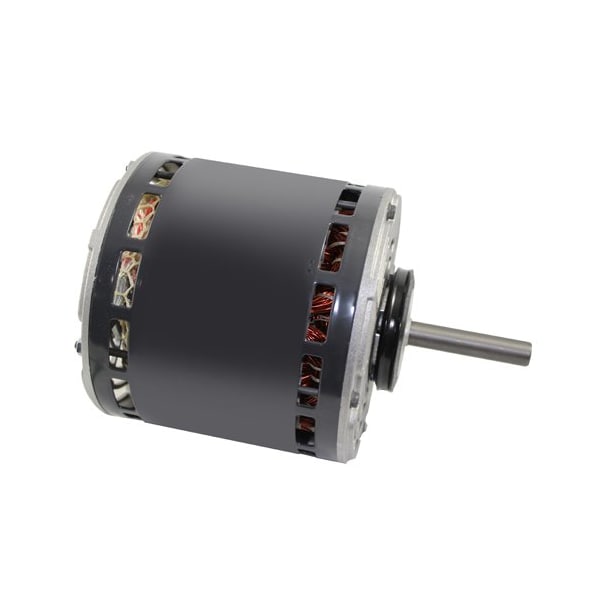

Motor, 3/4HP, 1075/5SPD, 208-230V, 60HZ
Mfr # LX7924
Zoro # G0920200
product price: $339.99
/ea
Free Shipping & Returns
Key Features
Frame
48
HP
3/4 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LX7924
Zoro #
G0920200
UPC #
786382100636
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Shaft Length
2 3/16 in
Length Less Shaft
5 7/8 in
Body Dia.
5.6"
Manufacturers Warranty Length
1 yr.
Overall Length
8 7/8 in
Description
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 5, Voltage 208-230V AC, 4.6 A Full Load Amps, 48Y Frame, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel, Shaft Length 2 3/16 in, Shaft Dia. 1/2 in
