Motor, 5Hp, 1760Rpm, 208-230/460V, 184T, 5 hp HP, 184T Frame, 208-230/460V; 190/380V Voltage

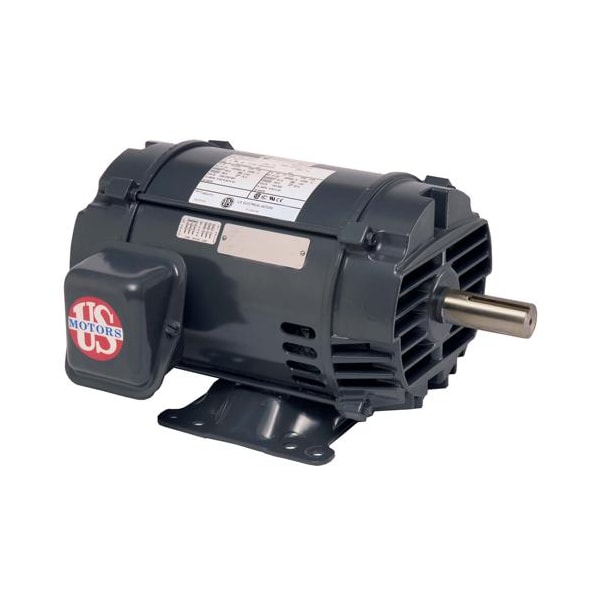

The U.S. MOTORS - D5P2D is a 3-Phase AC Motor rated for operation within the specified duty cycle ranges in various industrial applications. With its robust frame and high horsepower, this motor is rated to handle certain tasks as per its specifications.

Key Features of the U.S. MOTORS - D5P2D:

• Duty Cycle: The motor has a specified duty cycle, which refers to its operational time before requiring a cool-down period.
• Frame: The 184T frame houses and supports the internal parts of the motor, conforming to standard specifications for compatibility and interchangeability.
• Full Load Amps: It operates within the range of 13.7-12.4/6.2 A full load amps as indicated in the product's technical specifications.
• Horsepower (HP): With an output capacity rating of 5 hp, it is designed to meet certain performance criteria under specific conditions.
• Insulation Class (Ins. Class): Classified as F, indicating that the insulation is rated for operation up to maximum temperatures as per product specifications.
• Kilowatt (Kw): The motor's output capacity is rated at 3.73 kW which determines its efficiency in converting electrical energy into mechanical force.
• Motor Bearings: Equipped with bearings type 6206-2Z-J/C3 intended to help reduce friction between moving parts according to their design specification
• Motor Enclosure Design: Designed with an ODP enclosure to protect internal components from environmental factors while also determining its cooling method
• NEMA Design: Meets NEMA design B standards, which define certain characteristics such as torque and speed under specific conditions
• Nameplate RPM: Operates at a speed of 1755 / 1440 RPM under full load, as indicated on its factory-installed nameplate
• Nominal Efficiency: With a nominal efficiency rating of 0.895, this indicates how much electrical energy may be converted into mechanical force under ideal circumstances
• Phase: Operates in three phases which is directly related to its efficiency and smoothness of operation
• Standards: Meets the requirements of EE and NEMA Premium standards as per the product's technical specifications.
• Voltage: Requires an electrical potential difference (voltage) of 208-230/460V; 190/380V to operate influencing its speed and power output.
